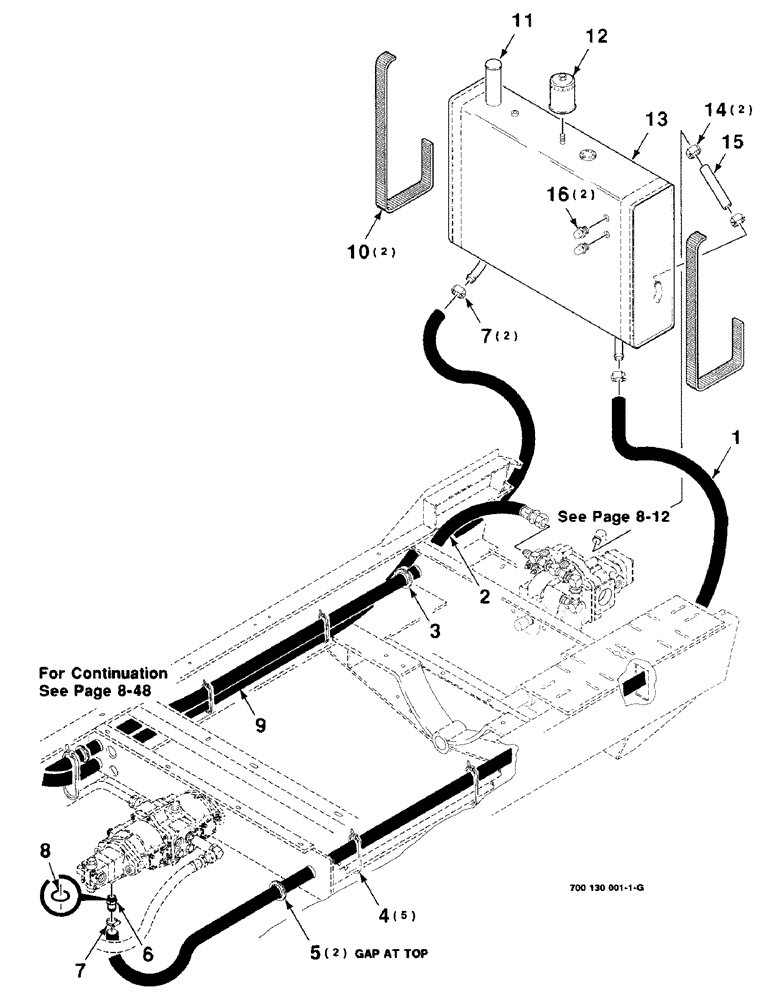

Запчасти Case IH 8850 (08-52) - HYDRAULIC RESERVOIR ASSEMBLY (08) - HYDRAULICS

1

7896574

HYDRAULIC HOSE,31.75 mm ID x 2337.00 mm, SAE 100R4, SAE J517, SAE J343

HOSE - hydraulic

1шт.

2

700706948

HOSE

- hydraulic

1шт.

3

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

4

306132C1

CABLE TIE,14.5" L

14 in

5шт.

5

6511695

GROMMET

2шт.

6

6829386

FITTING

- suction (Includes item 8)

1шт.

7

700706943

CLAMP

- hose

3шт.

8

738476

O-RING

1шт.

9

700707963

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

10

700120658

LINER

FELT LINER

2шт.

11

700707293

CAP

- tank

1шт.

12

7825516

FILTER

1шт.

13

700706944

RESERVOIR, HYDRAULIC

OIL RESERVOIR (Includes item 11)

1шт.

14

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

15

700711958

HYDRAULIC HOSE,25.40 mm ID x 315.00 mm, TYPE 100R3 SAE J517

25.40 mm ID x 315.00 mm, TYPE 100R3 SAE J517

1шт.

16

8799439

GAUGE

SIGHT GAUGE

2шт.
