(08-50) - MANIFOLD AND OIL FILTER ASSEMBLY

Запчасти Case IH 8850 (08-50) - MANIFOLD AND OIL FILTER ASSEMBLY (08) - HYDRAULICS

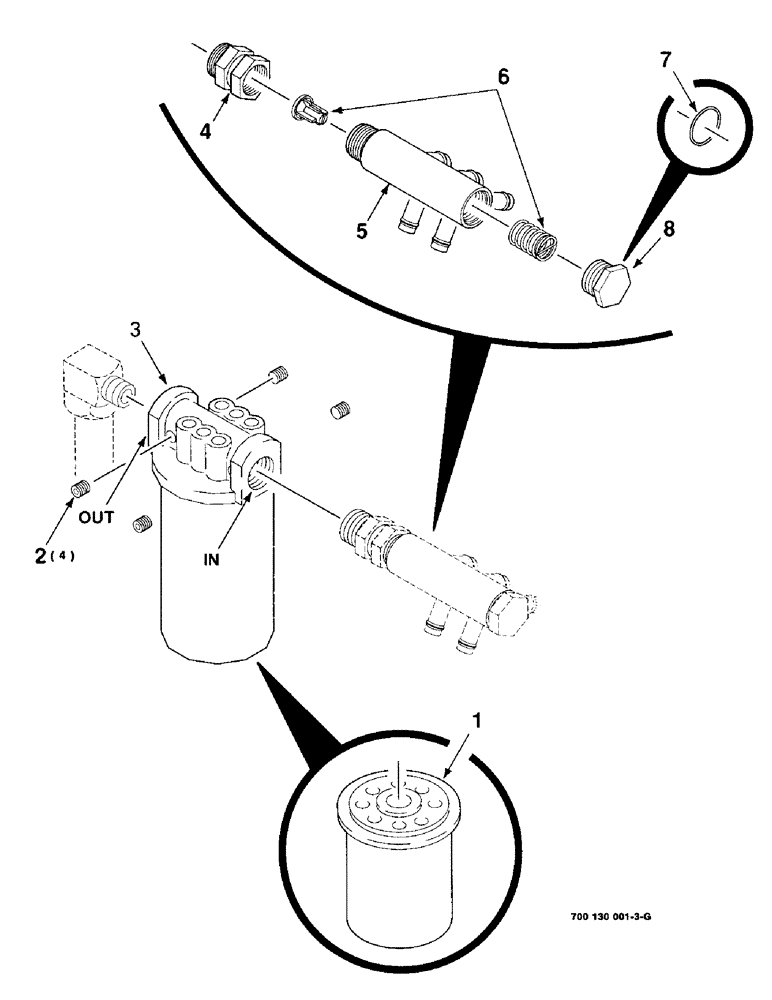

Схема запчастей Case IH 8850 - (08-50) - MANIFOLD AND OIL FILTER ASSEMBLY (08) - HYDRAULICS
8
6
3
5
1
4
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7738743

FILTER

KIT - filter element

1шт.

2

046797

PLUG

1/8-27 NPTF PIPE PLUG

4шт.

3

8042574

FILTER ASSY

FILTER AND HEAD ASSEMBLY (Includes items 1 and 2)

1шт.

4

218-5259

HYD CONNECTOR,1 5/8"-12 Male ORB x 1 1/4" NPSM Fem Sw

SWIVEL ADAPTOR

1шт.

5

700713408

MANIFOLD

1шт.

6

8040669

VALVE POPPET

POPPET AND SPRING KIT

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

8

8746117

PLUG

- o-ring (Includes item 7)

1шт.
