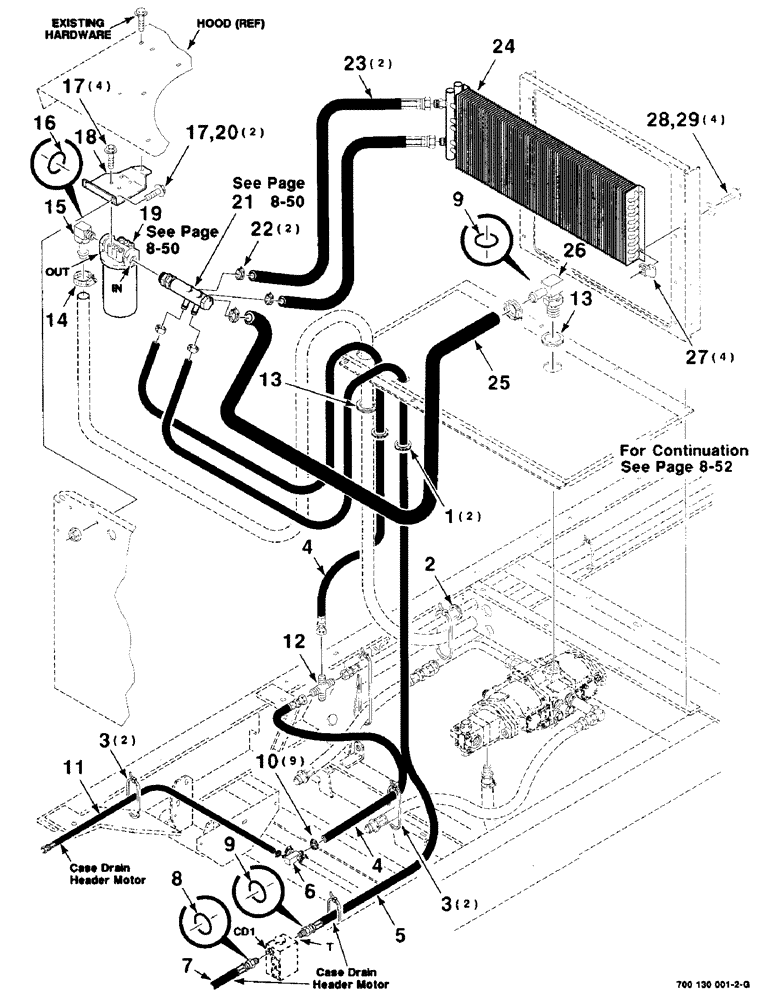

Запчасти Case IH 8850 (08-48) - HYDRAULIC OIL COOLER ASSEMBLY (08) - HYDRAULICS

1

8027179

GROMMET

2шт.

2

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

3

306132C1

CABLE TIE,14.5" L

14 in

4шт.

4

700706949

FLEXIBLE HOSE

HOSE - hydraulic

2шт.

5

700711947

HYDRAULIC HOSE,19.05 mm ID x 2650.00 mm

(Includes item 9) 19.05 mm ID x 2650.00 mm

1шт.

6

700711956

MANIFOLD

1шт.

7

700711959

HYDRAULIC HOSE,12.70 mm ID x 2300.00 mm, SAE J516

(Includes item 8) 12.70 mm ID x 2300.00 mm, SAE J516

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

738484

O-RING

2шт.

10

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

9шт.

11

700711957

HYDRAULIC HOSE,12.70 mm ID x 3700.00 mm

12.70 mm ID x 3700.00 mm

1шт.

12

700701795

HYD CONNECTOR

CROSS

1шт.

13

727248

GROMMET

2шт.

14

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

1шт.

15

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable, Includes item 16

1шт.

16

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

17

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

18

700115624

SUPPORT

FILTER MOUNTING

1шт.

19

8042574

FILTER ASSY

FILTER - hydraulic

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

21

700713406

MANIFOLD

- bypass

1шт.

22

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, #16, 0.81/1.50 Type F Worm

2шт.

23

700713407

HYDRAULIC HOSE,1.00" ID x 55.12", SAE J516, SAE J343

HOSE - hydraulic

2шт.

24

700711961

COOLER

HYDRAULIC OIL COOLER

1шт.

25

700707962

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

26

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

90 DEGREE INSERT COUPLING (Incl. item 9)

1шт.

27

74807

NUT

1/4-20 SPEED NUT

4шт.

28

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

29

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.
