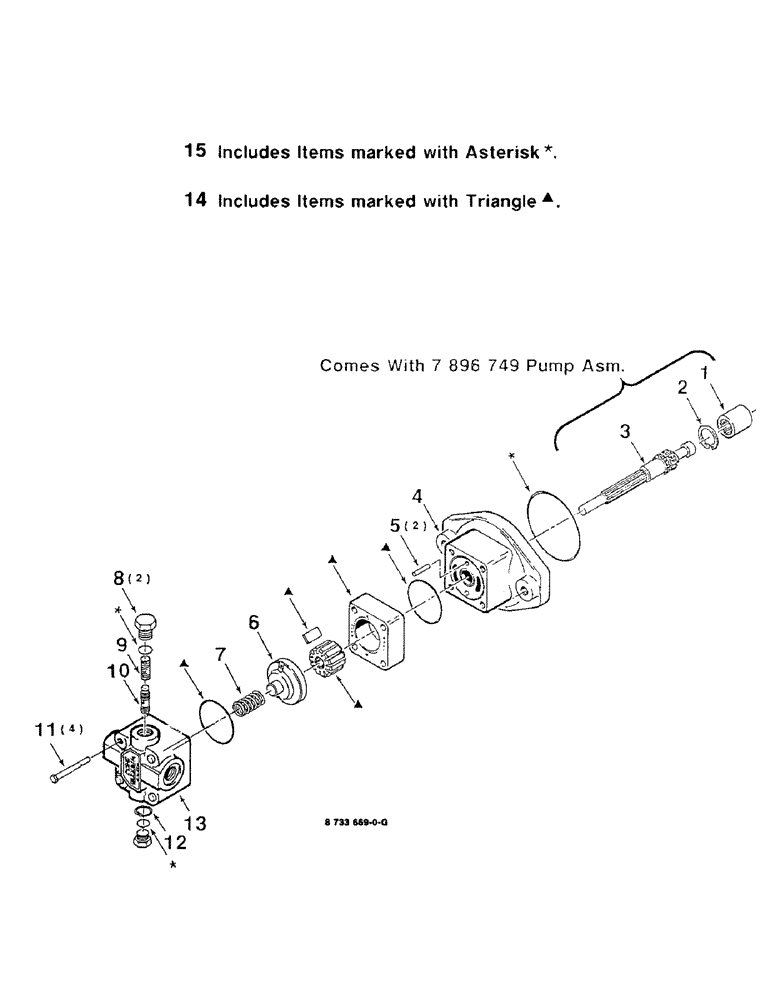

Запчасти Case IH 8850 (08-46) - VANE PUMP ASSEMBLY, HYDROSTATIC TRANSMISSION, 8733669 VANE PUMP ASSEMBLY COMPLETE (08) - HYDRAULICS

8733669

PUMP

VANE PUMP ASSEMBLY COMPLETE

1шт.

1

149709C1

COUPLING

(Not included with 8733669)

1шт.

2

8730285

COVER

RING - retaining (Not included with 8733669)

1шт.

3

149708C1

SHAFT

- pump (Not included with 8733669 Vane Pump Asm)

1шт.

4

8730335

BODY

1шт.

5

7039167

PIN

2шт.

6

7033756

PLATE

- pressure

1шт.

7

7033764

SPRING

1шт.

8

214389

PLUG,3/4" - 16 ORB

2шт.

9

D46216

SPRING

1шт.

10

L33718

VALVE

- control

1шт.

11

7039159

SCREW

3/8-16 X 3-3/4 C grade 8

4шт.

12

7033780

RING, SNAP

RING - retaining

1шт.

13

8732604

CYLINDER

COVER

1шт.

14

8730277

KIT

CARTRIDGE KIT, Includes items in art marked with a triangle

1шт.

15

700705452

SEAL KIT

SEAL REPAIR KIT, Includes items in art marked with an asterisk

1шт.
