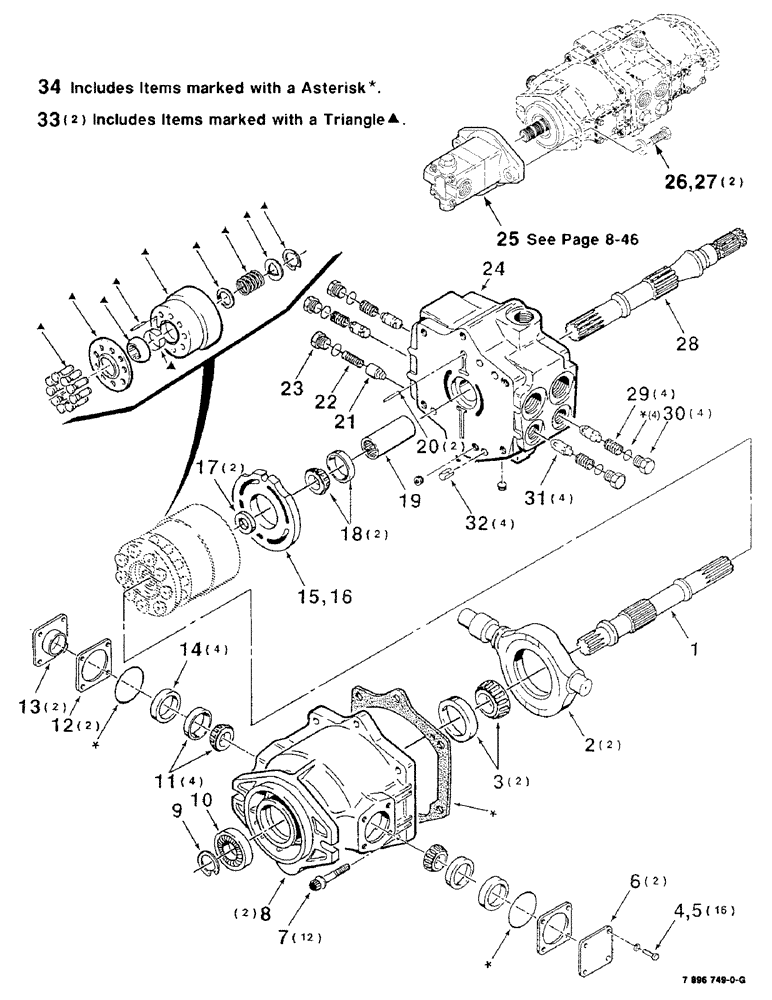

Запчасти Case IH 8850 (08-44) - HYDRAULIC PUMP ASSEMBLY, TANDEM, HYDROSTATIC, 7896749 HYDROSTATIC TANDEM PUMP ASSEMBLY COMPLETE (08) - HYDRAULICS

7896749

PUMP

TANDEM PUMP ASSEMBLY COMPLETE

1шт.

1

149703C1

SHAFT

- intermediate

1шт.

2

N8292

YOKE

- pintle

2шт.

3

8730053

BEARING SET

BEARING SET

2шт.

4

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

16шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

6

A47288

COVER

- pintle

2шт.

7

380-2624

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

12-POINT FLANGE SCREW

12шт.

8

N8293

HOUSING

2шт.

9

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

10

700705451

SEAL

SEAL

1шт.

11

1263241C1

WHEEL BEARING KIT

BEARING SET

4шт.

12

145590C1

SHIM KIT

2шт.

13

N8294

COVER

(Includes seal)

2шт.

14

A47286

SPACER

- pintle bearing

4шт.

15

149704C1

LARGE PLATE

PLATE - wafer, left hand rotation

1шт.

16

145593C1

LARGE PLATE

PLATE - wafer, right hand rotation

1шт.

17

145582C1

KIT

- bearing - spacer

2шт.

18

8730046

BEARING SET

BEARING SET

2шт.

19

N8298

SPLINED COUPLING

COUPLING

1шт.

20

A47309

PIN

2шт.

21

8730152

VALVE POPPET

VALVE - check

1шт.

22

149707C1

SPRING

1шт.

23

N8302

PLUG

1шт.

24

N8299

BLOCK

- valve

1шт.

25

8733669

PUMP

VANE PUMP ASSEMBLY

1шт.

26

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

27

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

28

8730111

SHAFT

- main

1шт.

29

N7925

SPRING

4шт.

30

1252160C1

PLUG

- recessed

4шт.

31

149705C91

VALVE

- check

4шт.

32

A47301

PIN

- roll

4шт.

33

145592C91

KIT

ROTATING ASSEMBLY KIT, Includes items in art marked with a triangle

2шт.

34

700705452

SEAL KIT

SEAL REPAIR KIT, Includes items in art marked with an asterisk

1шт.
