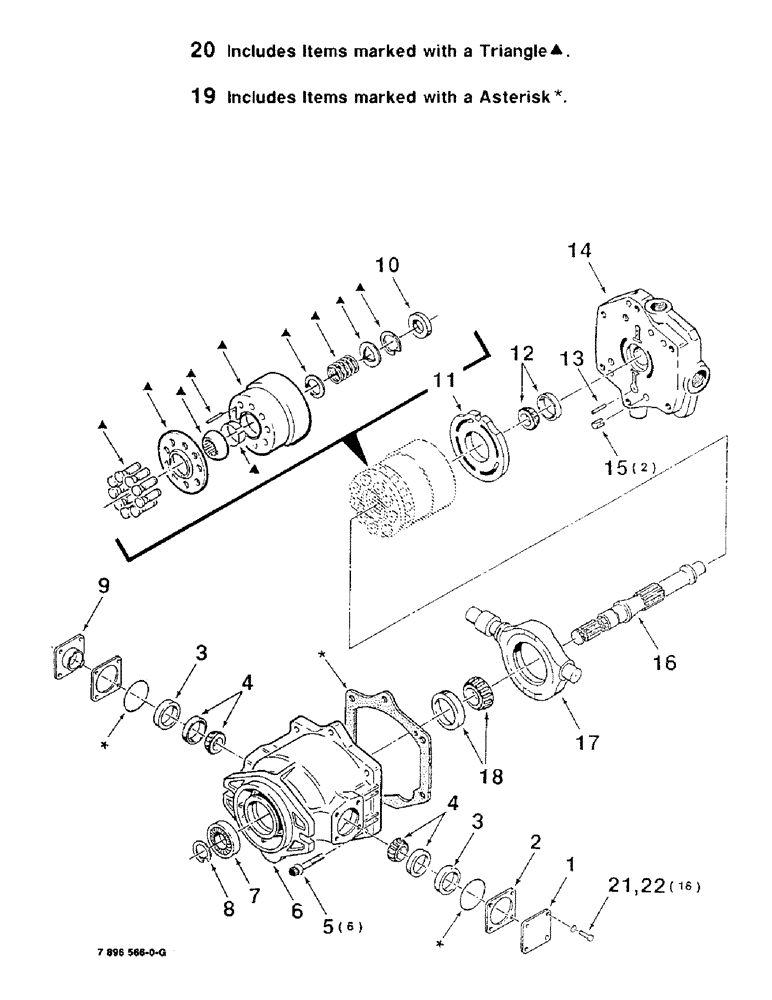

Запчасти Case IH 8850 (08-42) - HYDRAULIC MOTOR ASSEMBLY, HYDROSTATIC TRANSMISSION, 7896566 MOTOR ASSEMBLY COMPLETE (08) - HYDRAULICS

7896566

MOTOR, HYDRAULIC

MOTOR - hydrostatic, complete

1шт.

1

A47288

COVER

- pintle

1шт.

2

145590C1

SHIM KIT

1шт.

3

A47286

SPACER

- pintle bearing

2шт.

4

1263241C1

WHEEL BEARING KIT

BEARING SET

2шт.

5

380-2624

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

12-POINT FLANGE SCREW

6шт.

6

N8293

HOUSING

1шт.

7

700705451

SEAL

SEAL

1шт.

8

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

9

N8294

COVER

SEAL - pintle cover

1шт.

10

145582C1

KIT

SPACER - bearing

1шт.

11

N8306

PLATE

- wafer

1шт.

12

8730046

BEARING SET

BEARING SET

1шт.

13

A47309

PIN

1шт.

14

8732703

PLATE

- valve

1шт.

15

A47301

PIN

ROLL - pin

2шт.

16

8732711

SHAFT

1шт.

17

N8292

YOKE

vari-drive

1шт.

18

8730053

BEARING SET

BEARING SET

1шт.

19

700705449

SEAL KIT

SEAL REPAIR KIT

1шт.

20

8732737

ROD

ROTATING ASSEMBLY KIT

1шт.

21

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

16шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.
