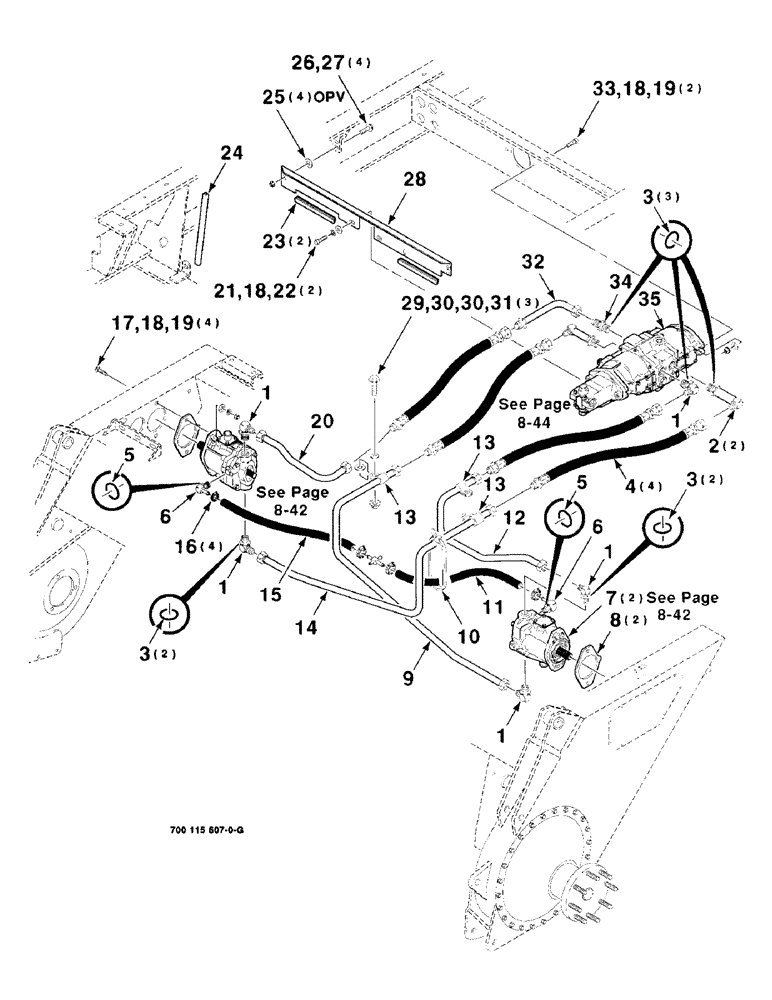

Запчасти Case IH 8850 (08-40) - HYDRAULIC TRANSMISSION DRIVE ASSEMBLY (08) - HYDRAULICS

1

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

(Incl. item 3) 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

5шт.

2

8046997

ELBOW

- 90 degrees (Includes item 3)

2шт.

3

738476

O-RING

7шт.

4

7073174

HOSE

- Hydraulic

4шт.

5

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

2шт.

6

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

- 90°, barbed (Incl item 5)

2шт.

7

7896566

MOTOR, HYDRAULIC

HYDRAULIC - motor

2шт.

8

744144

GASKET

2шт.

9

700706984

RIGID TUBE

LINE - hydraulic, lower left

1шт.

10

306132C1

CABLE TIE,14.5" L

14" TIE

1шт.

11

700706982

FLEXIBLE HOSE

HYDRAULIC - hose

1шт.

12

700706987

RIGID TUBE

LINE - hydraulic, upper left

1шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

3шт.

14

700706985

RIGID TUBE

LINE - hydraulic, lower right

1шт.

15

7896657

HYDRAULIC HOSE,15.88 mm ID x 864.00 mm

HYDRAULIC - hose

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

4шт.

17

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

18

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

8шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

20

700706988

RIGID TUBE

LINE - hydraulic, upper right

1шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

6511695

GROMMET

GGROMMET

2шт.

24

700105139

GROMMET

1шт.

25

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

26

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

700115625

SUPPORT

ANGLE

1шт.

29

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

30

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

32

700706983

RIGID TUBE,25.4 mm OD, 340, 191 mm Length

REAR - outer, line

1шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

34

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Short (Incl. item 3) 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

35

7896749

PUMP

HYDRAULIC PUMP

1шт.
