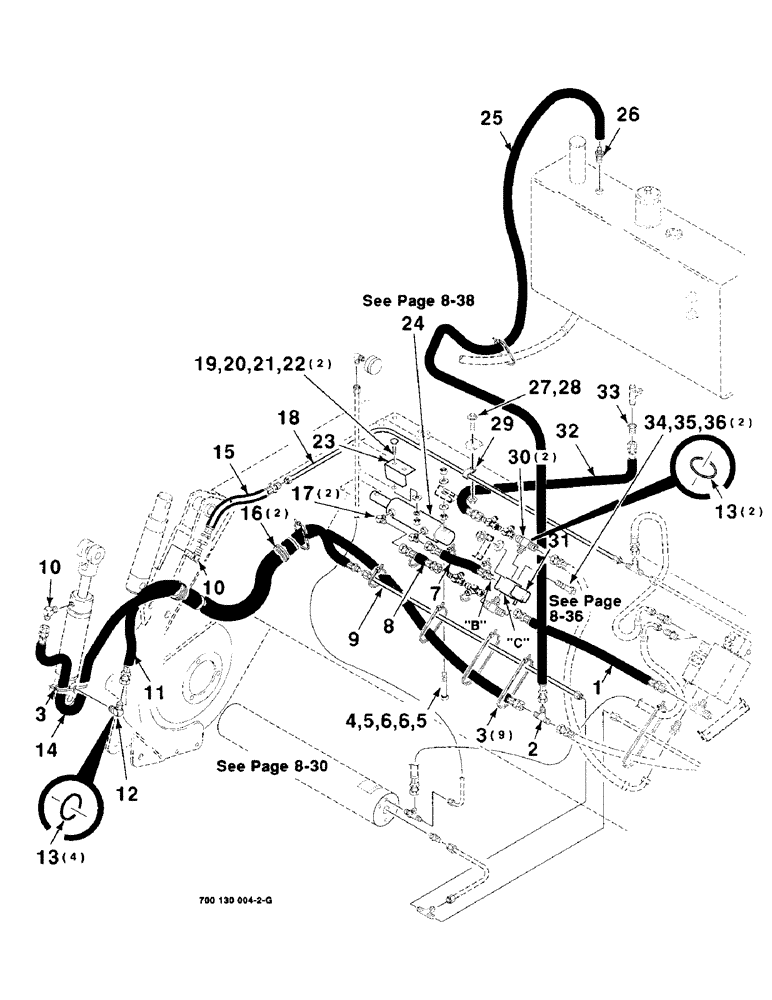

Запчасти Case IH 8850 (08-34) - HEADER LIFT HYDRAULIC ASSEMBLY, RIGHT (08) - HYDRAULICS

1

700707085

HOSE

- hydraulic

1шт.

2

218-593

TEE,9/16"-18, 37 Degree

- union

1шт.

3

306132C1

CABLE TIE,14.5" L

14" TIE

10шт.

4

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

5

425-1010

NUT,5/8"-11, G5

2шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

7

700707080

HOSE

- hydraulic

1шт.

8

700707081

HOSE

- hydraulic

1шт.

9

700708739

FLEXIBLE HOSE

LINE - hydraulic

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

11

8842338

HOSE

- hydraulic

1шт.

12

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degrees (Includes item 13)

1шт.

13

738468

O-RING

6шт.

14

700707082

HOSE

- hydraulic

1шт.

15

8843153

HOSE

- hydraulic

1шт.

16

700707073

GROMMET

2шт.

17

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees

2шт.

18

700707071

TUBE ASSY.,9.52 mm OD, 1200, 440 mm Length

LINE - steel

1шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 - 16 X 1 RHSNB

2шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

21

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

425-106

NUT,3/8"-16, Cl 5

2шт.

23

700115732

STOP

- angle

1шт.

24

7075625

CYLINDER

- hydraulic

1шт.

25

700707084

HOSE

- hydraulic

1шт.

26

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

INSERT

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

28

231-5146

FLANGE NUT,3/8"-16

1шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

1шт.

30

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- str thd branch (Includes item 13)

2шт.

31

700712670

VALVE

- (Delta)

1шт.

32

700707086

HOSE

- hydraulic

1шт.

33

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

ADAPTER

1шт.

34

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

35

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

36

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.
