(08-32) - HYDRAULIC CONTROL VALVE ASSEMBLY, LIFT & FLOTATION, DELTA, 700712669 CONTROL VALVE ASSY COMPLETE

Запчасти Case IH 8850 (08-32) - HYDRAULIC CONTROL VALVE ASSEMBLY, LIFT & FLOTATION, DELTA, 700712669 CONTROL VALVE ASSY COMPLETE (08) - HYDRAULICS

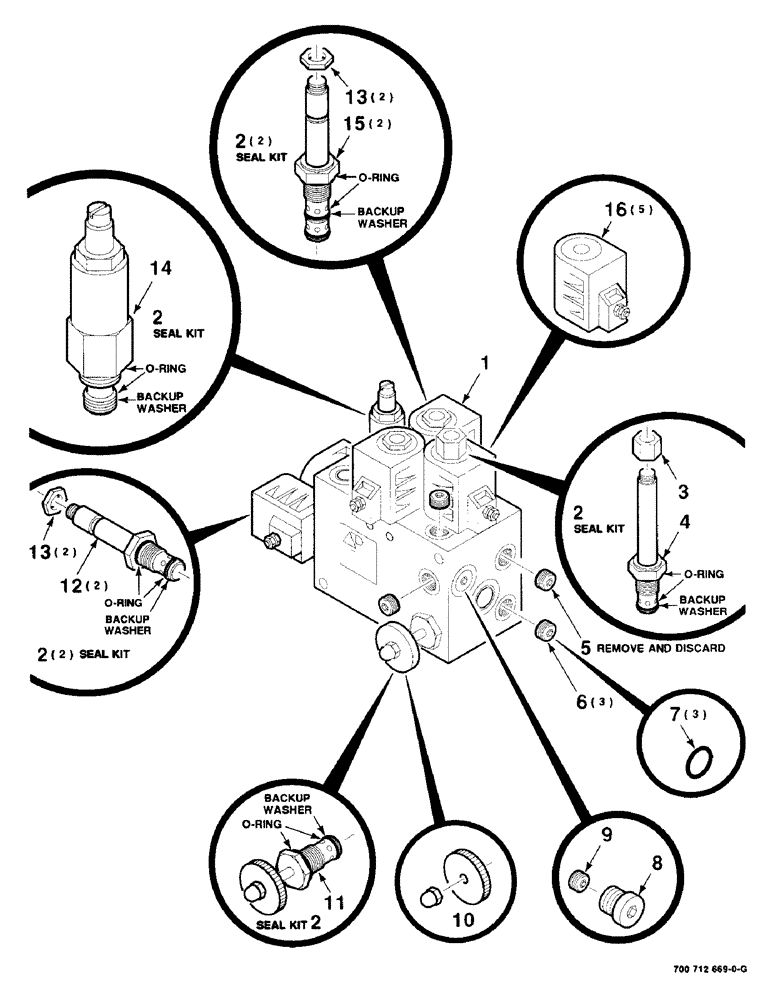

Схема запчастей Case IH 8850 - (08-32) - HYDRAULIC CONTROL VALVE ASSEMBLY, LIFT & FLOTATION, DELTA, 700712669 CONTROL VALVE ASSY COMPLETE (08) - HYDRAULICS
2
10
2
4
6
13
5
2
7
12
16
11
14
1
15
13
2
8
9
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712669

VALVE

- control, complete

1шт.

2

700712678

KIT

- seal

7шт.

3

700712824

NUT

HEX NUT

1шт.

4

700712823

ASSEMBLY

N. O. POPPET VALVE

1шт.

5

700712829

PLUG

- orifice .109 (remove and discard)

1шт.

6

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

#4 SAE PLUG (Includes item 7)

3шт.

7

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

3шт.

8

700712831

PLUG

#6 SAE PLUG

1шт.

9

700712827

PLUG

- orifice .060

1шт.

10

700712688

KNOB

KIT - knob and nut

1шт.

11

700712826

VALVE

FLOW CONTROL

1шт.

12

700712822

CARTRIDGE

N. C. POPPET VALVE

2шт.

13

700712821

NUT

HEX NUT

4шт.

14

700712825

VALVE

RELIEF VALVE

1шт.

15

700712819

CARTRIDGE

3W 2P VALVE

2шт.

16

700712820

COIL

- 12 VDC SP encap

5шт.
