(08-28) - HEADER LIFT HYDRAULIC ASSEMBLY, LEFT

Запчасти Case IH 8850 (08-28) - HEADER LIFT HYDRAULIC ASSEMBLY, LEFT (08) - HYDRAULICS

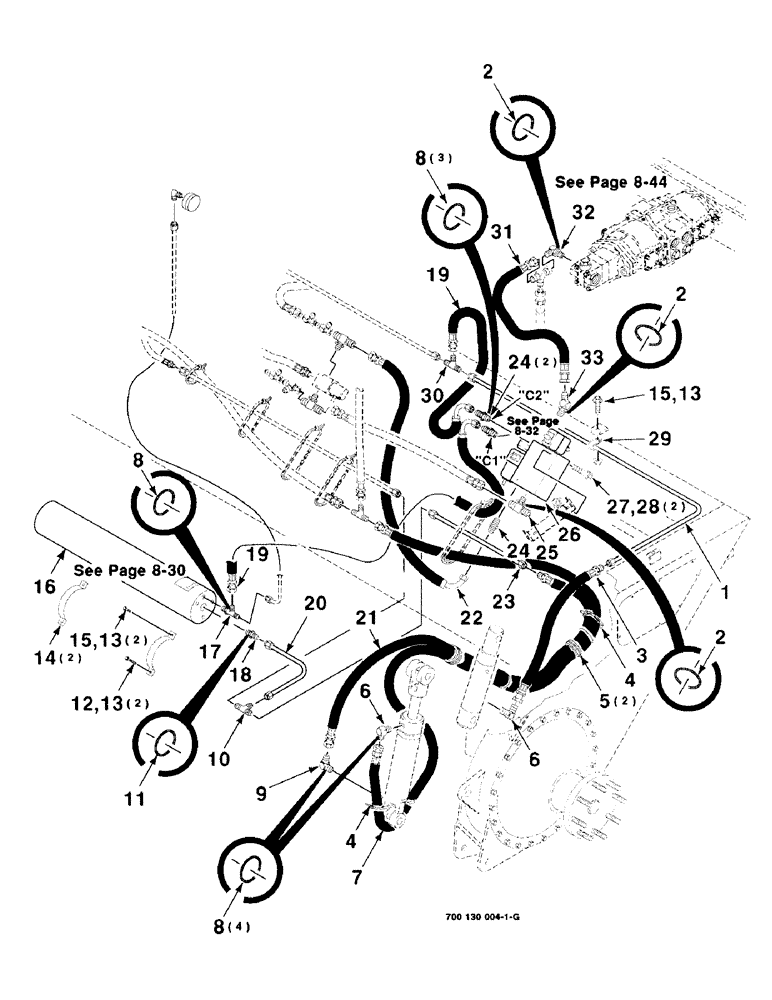

Схема запчастей Case IH 8850 - (08-28) - HEADER LIFT HYDRAULIC ASSEMBLY, LEFT (08) - HYDRAULICS
1
13
4
32
18
5
2
9
31
8
19
2
6
12
24
29
27
19
6
17
20
25
13
15
10
28
22
4
16
2
26
30
33
3
21
11
8
23
24
14
7
13
8
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707071

TUBE ASSY.,9.52 mm OD, 1200, 440 mm Length

LINE - steel

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

3

8843153

HOSE

- hydraulic

1шт.

4

306132C1

CABLE TIE,14.5" L

14" TIE

2шт.

5

700707073

GROMMET

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 8) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

7

700707082

HOSE

- hydraulic

1шт.

8

738468

O-RING

8шт.

9

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degrees (Includes item 8)

1шт.

10

218-596

TEE,1 1/16"-12 37 Degree

- JIC

1шт.

11

738484

O-RING

1шт.

12

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

2шт.

13

231-5146

FLANGE NUT,3/8"-16

5шт.

14

700122708

STRAP

2шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

16

700713363

ACCUMULATOR

ASSEMBLY - hydraulic

1шт.

17

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Str thd run (Includes item 8) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 11) 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

19

700707076

FLEXIBLE HOSE

HOSE - hydraulic

2шт.

20

700710133

TUBE,19.05 mm OD, 215, 215 mm Length

- hydraulic

1шт.

21

8842338

HOSE

- hydraulic

1шт.

22

700707079

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

23

700708738

RIGID TUBE

LINE - steel

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER (Incl. item 8)

1шт.

25

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- hydraulic (Includes item 2)

1шт.

26

700712669

VALVE

ASSEMBLY (Delta)

1шт.

27

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16-18 X 3-1/2 C

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

1шт.

30

218-593

TEE,9/16"-18, 37 Degree

- union

1шт.

31

700705745

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes item 2) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

33

7846801

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degrees (Includes item 2)

1шт.
