Запчасти Case IH 8850 (08-18) - HEADER FLOTATION AND LIFT ARM ASSEMBLY, LEFT (08) - HYDRAULICS

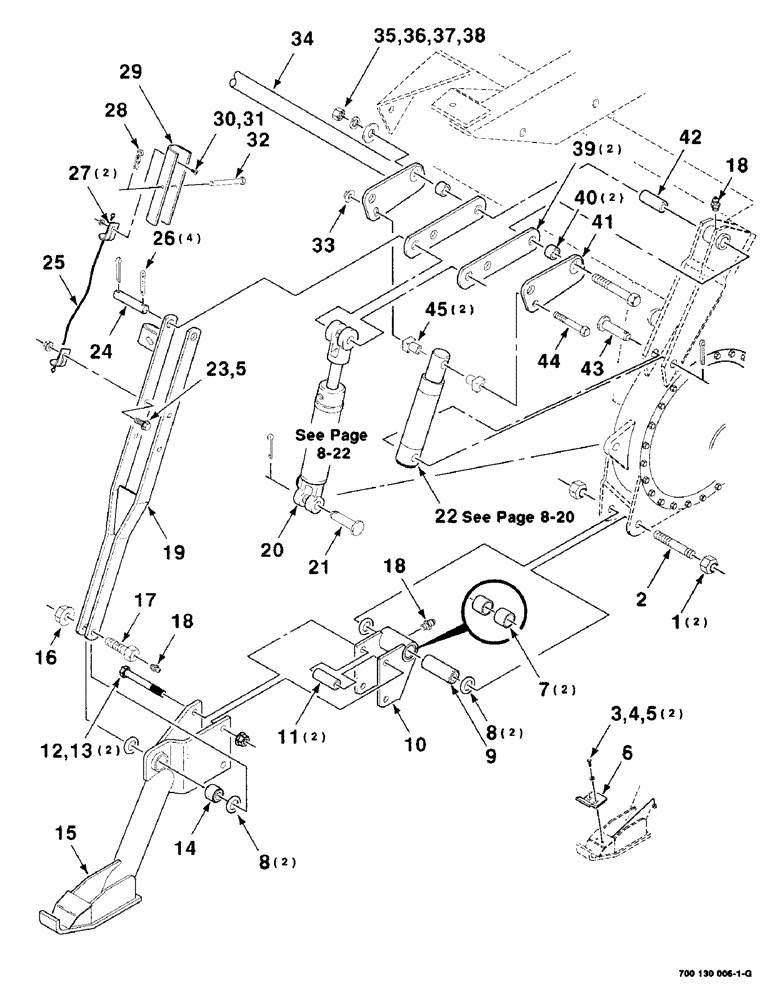

Схема запчастей Case IH 8850 - (08-18) - HEADER FLOTATION AND LIFT ARM ASSEMBLY, LEFT (08) - HYDRAULICS
29
40
16
43
32
3
18
6
27
38
30
33
8
44
1
36
20
7
37
8
14
25
26
12
17
39
13
41
9
24
34
15
45
11
18
21
2
4
10
31
19
5
23
18
35
28
5
42
22

Артикул

Название

Примечание

Количество

1

232-41116

LOCK NUT,1"-8, GC

1-8 HTLN GR/B

2шт.

2

700118693

PIN

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

5

231-5146

FLANGE NUT,3/8"-16

3шт.

6

700130145

STRAP

- retainer

1шт.

7

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

BEARING - needle

2шт.

8

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

4шт.

9

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

- lower

1шт.

10

700130076

PIVOT

WA (Includes item 7)

1шт.

11

6171441

BUSHING

2шт.

12

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4-10 X 6 C

2шт.

13

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

14

700130098

SPACER

- link

1шт.

15

700130079

ARM

LIFT ARM WA - left

1шт.

16

232-53114

FLANGE NUT,Flg, 7/8"-9

7/8-9 HFTLN GR/G

1шт.

17

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

- special

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

19

700130094

LINK

WA

1шт.

20

700712021

CYLINDER

- hydraulic

1шт.

21

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

1 X 3-1/2 CLEVIS PIN

1шт.

22

700711647

CYLINDER,50.8mm Rod, 127mm Stroke

- hydraulic

1шт.

23

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

24

700111102

PIN

1шт.

25

700706805

CABLE

- stop

1шт.

26

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

4шт.

27

700114675

ANCHOR

- cable

2шт.

28

T54573

PIN

.120 WIRE HAIR PIN COTTER

1шт.

29

6251292

STOP

- safety

1шт.

30

706176

SCREW

5/16-18 X 3/4 CRTHMS

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

32

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 X 2-1/8 CLEVIS PIN

1шт.

33

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

34

700118683

SHAFT

WA - torque

1шт.

35

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

.75 X 6.5 UNC GR5 YZD

1шт.

36

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.

37

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

38

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

39

700111085

STRAP

2шт.

40

6834071

BUSHING

2шт.

41

700111101

PLATE

- tube, torque

1шт.

42

700111080

BUSHING

- arm WA lift, right

1шт.

43

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1 X 4 CLEVIS PIN

1шт.

44

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

5/8-11 X 5-1/2 C GR8 NP

1шт.

45

700118814

BUSHING

2шт.

Выбрано товаров: 45
