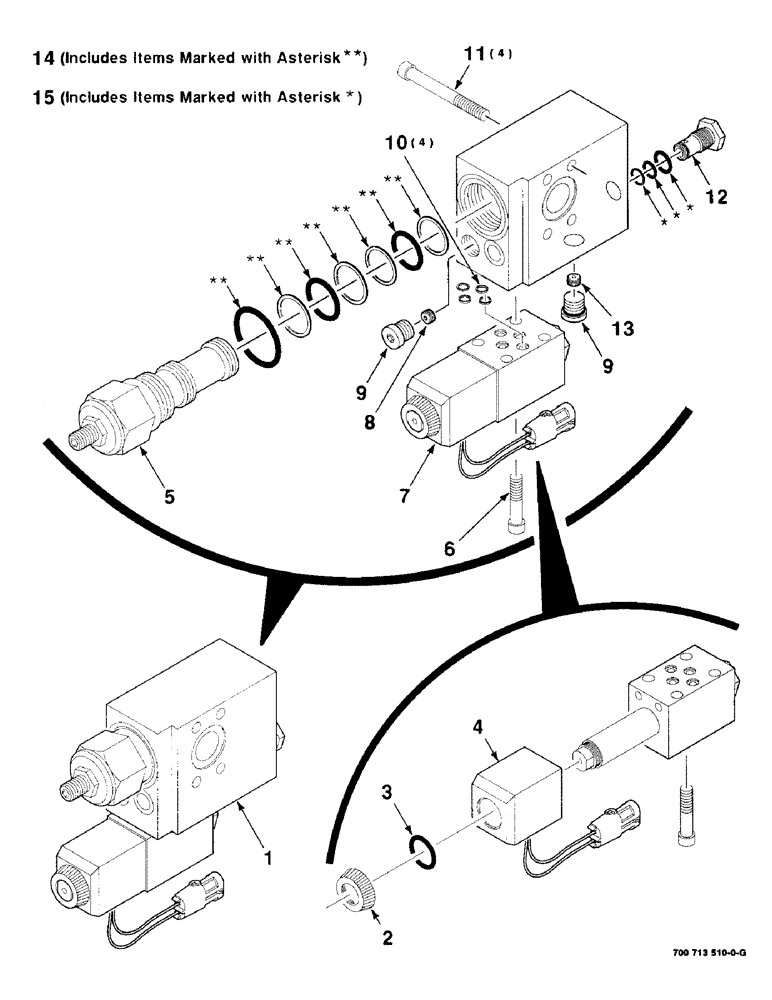

Запчасти Case IH 8850 (08-16) - HYDRAULIC SHUT OFF VALVE ASSEMBLY (700713510 HYDRAULIC SHUT OFF VALVE COMPLETE) (08) - HYDRAULICS

1

700713510

SHUT-OFF VALVE

VALVE - shut off assembly complete

1шт.

2

700715413

O-RING

1шт.

3

700715393

NUT

- plastic

1шт.

4

700715392

SOLENOID

1шт.

5

700713513

VALVE, CONTROL

PRESSURE SENSING VALVE ASSEMBLY

1шт.

6

700714189

KIT

BOLT KIT (Includes 4 bolts)

1шт.

7

700713512

SOLENOID

- valve

1шт.

8

700714186

PLUG

ORIFICE (.030)

1шт.

9

700712831

PLUG

#6 SAE PLUG

2шт.

10

700714309

O-RING

4шт.

11

700714181

BOLT

3/8-16 X 3-1/4 HSHCS

4шт.

12

700713514

VALVE

- check

1шт.

13

700713516

PLUG

ORIFICE (.040)

1шт.

14

700714185

KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with a double asterisk

1шт.

15

700706154

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with a single asterisk

1шт.
