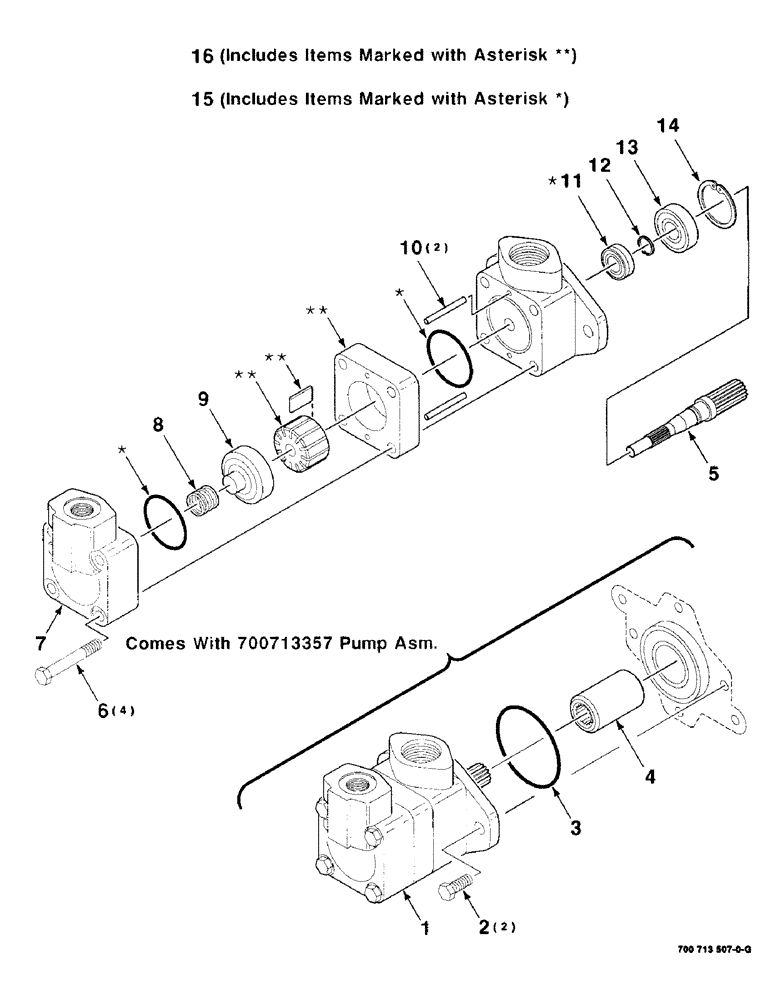

Запчасти Case IH 8850 (08-14) - HYDRAULIC VANE PUMP ASSEMBLY, 700713507 HYDROSTATIC VANE PUMP ASSEMBLY COMPLETE (08) - HYDRAULICS

1

700713507

PUMP

VANE PUMP ASSEMBLY COMPLETE

1шт.

2

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Not included with 700713507) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

2шт.

3

700713515

O-RING

O-RING (Not included with 700713507)

1шт.

4

700713499

COUPLING

(Not included with 700713507)

1шт.

5

700713508

SHAFT

1шт.

6

1712736

BOLT

3/8-16 X 3 C GRD. 8

4шт.

7

700713500

COVER

1шт.

8

7033764

SPRING

1шт.

9

7033756

PLATE

- pressure, S/A

1шт.

10

700713504

PIN

2шт.

11

700713509

SEAL

- shaft

1шт.

12

H748665

SNAP RING,#66, Ext

Ring, Snap, #66, Ext

1шт.

13

F37843

BEARING

1шт.

14

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

15

7033681

KIT

SEAL KIT, Includes items in art marked with a single asterisk

1шт.

16

700701909

KIT

CARTRIDGE KIT, Includes items in art marked with a double asterisk

1шт.
