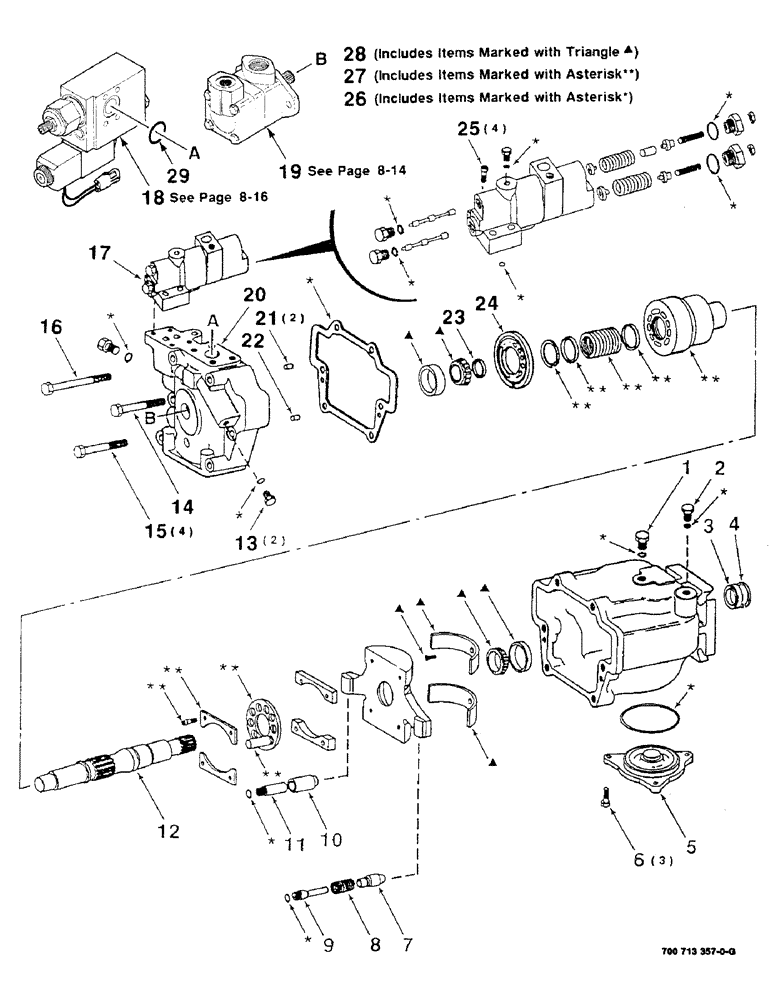

Запчасти Case IH 8850 (08-12) - HYDRAULIC PUMP ASSEMBLY, HEADER DRIVE, 700713357 HYDRAULIC PUMP ASSEMBLY, HEADER DRIVE, COMPLETE (08) - HYDRAULICS

700713357

PUMP

HYDRAULIC PUMP COMPLETE (Includes pages 8-12 thru 8-16)

1шт.

1

700713498

PLUG

1шт.

2

700713460

PLUG

-O-RING

1шт.

3

700713502

SEAL

- shaft

1шт.

4

700713505

RING

- retaining

1шт.

5

700713501

COVER

1шт.

6

700714183

BOLT

M6 X 1.00 X 16 C GRD. 8.8

3шт.

7

700713493

PISTON

- bias

1шт.

8

700713494

SPRING

1шт.

9

700713492

ROD

- bias

1шт.

10

700713491

PISTON

- control

1шт.

11

700713490

ROD

- control

1шт.

12

700713496

SHAFT

1шт.

13

700713476

PLUG

1шт.

14

700714187

BOLT

M12 X 1.75 X 70 C GRD. 10.9

1шт.

15

700714182

BOLT

M12 X 1.75 X 50 C GRD. 10.9

4шт.

16

700714180

BOLT

M12 X 1.75 X 90 C GRD. 10.9

1шт.

17

700715164

CONTROL

S/A

1шт.

18

700713510

SHUT-OFF VALVE

VALVE - shut off

1шт.

19

700713507

PUMP

1шт.

20

700713483

BLOCK

- valve

1шт.

21

700713482

PIN

2шт.

22

700713481

PIN

1шт.

23

700713485

KIT

SPACER KIT - shaft

1шт.

24

700713497

PLATE

- valve

1шт.

25

700714184

BOLT

M8 X 1.25 X 35 HSHCS GRD. 12.9

4шт.

26

700713489

SEAL KIT

- seal, Includes items in art marked with a single asterisk

1шт.

27

700713488

KIT

- rotating group, Includes items in art marked with a double asterisk

1шт.

28

700713486

BEARING ASSY

KIT - bearing, Includes items in art marked with a triangle

1шт.

29

7030653

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.
