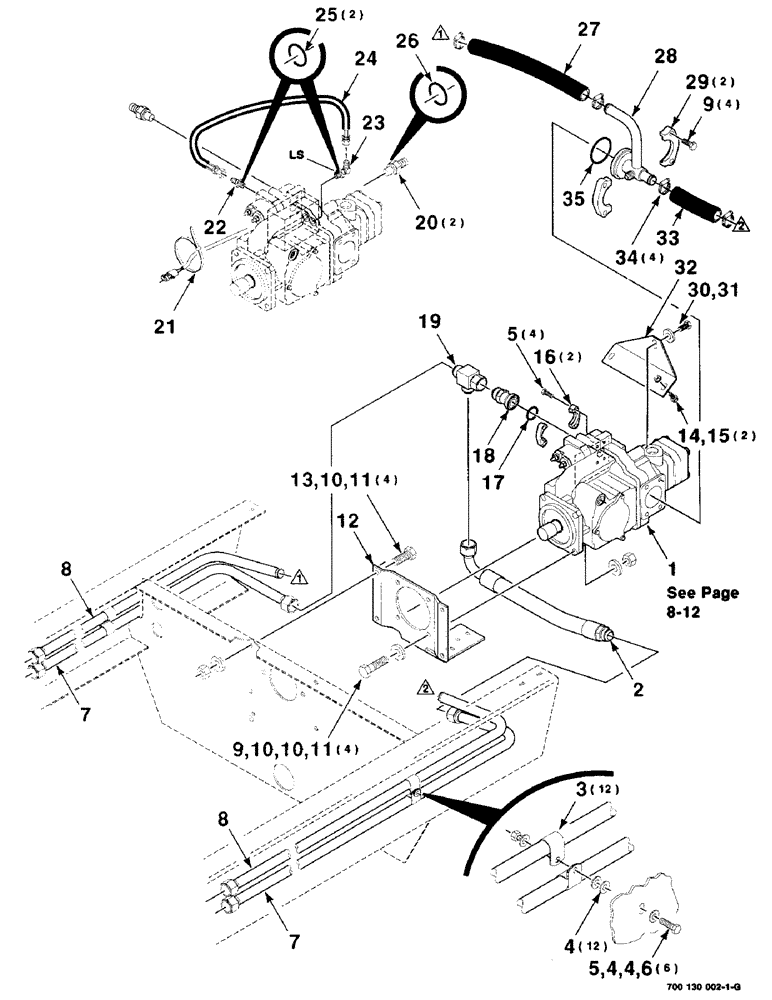

Запчасти Case IH 8850 (08-10) - HEADER DRIVE HYDRAULIC ASSEMBLY, REAR (08) - HYDRAULICS

1

700713357

PUMP

- header drive

1шт.

2

700713348

HYDRAULIC HOSE,1.00" ID x 22.44", SAE J517, SAE J343

HOSE - hydraulic

1шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

12шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

24шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

10шт.

6

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

6шт.

7

700713349

TUBE,25.4 mm OD, 3800, 260 mm Length

LINE - hydraulic, left

2шт.

8

700712536

TUBE,25.4 mm OD, 3760, 263 mm Length

LINE - hydraulic

2шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

10

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

12

700130067

MOUNTING PARTS

MOUNTING - pump

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

15

231-5146

FLANGE NUT,3/8"-16

2шт.

16

700713356

CLAMP

- split flange

2шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

18

700713355

UNION

- straight

1шт.

19

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

FITTING - tee, swivel

1шт.

20

700711217

FITTING

NIPPLE - diagnostic (Includes item 25)

2шт.

21

306132C1

CABLE TIE,14.5" L

TIE - nylon 14 in

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short str thd (Incl. item 24)

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 24) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

24

700707500

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

25

738468

O-RING

2шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

27

700709946

HOSE

- suction

1шт.

28

700711949

FITTING

- special

1шт.

29

700713353

CLAMP

- split flange

2шт.

30

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

31

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

32

700130066

ANGLE

- mtg

1шт.

33

700711950

HYDRAULIC HOSE,25.40 mm ID x 150.00 mm, Type 100R3 SAE J514

25.40 mm ID x 150.00 mm, Type 100R3 SAE J514

1шт.

34

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

4шт.

35

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.
