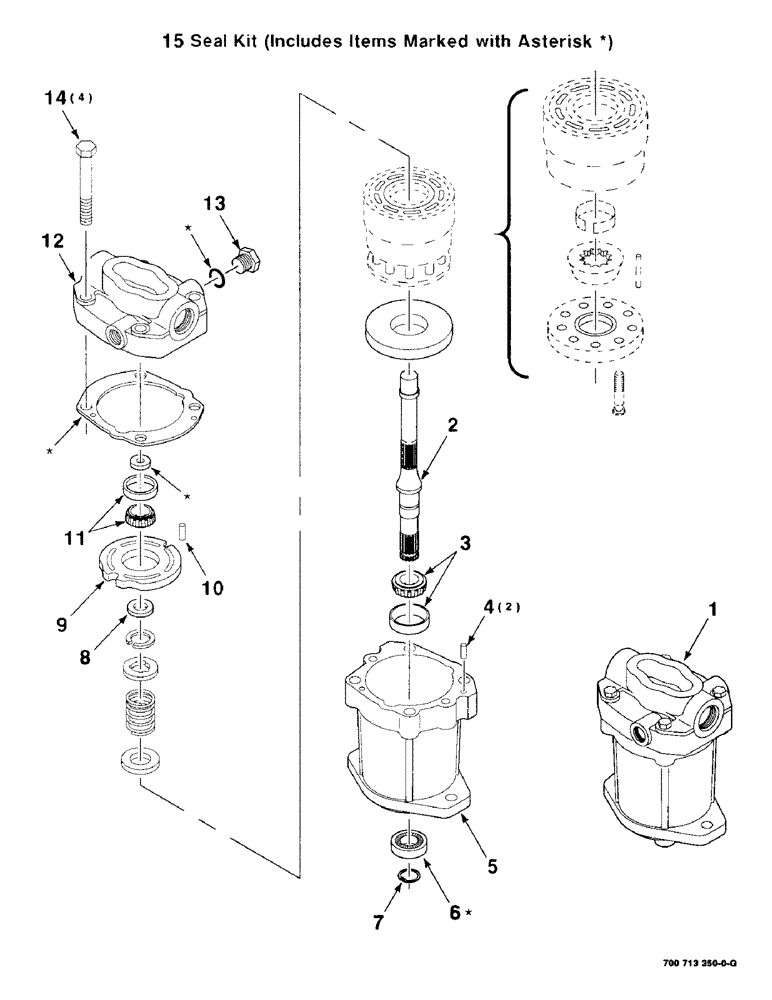

Запчасти Case IH 8850 (08-04) - HYDRAULIC MOTOR ASSEMBLY, HEADER DRIVE, 700713350 HEADER DRIVE HYDRAULIC MOTOR ASSEMBLY COMPLETE (08) - HYDRAULICS

1

700713350

MOTOR

HYDRAULIC MOTOR COMPLETE

1шт.

2

700713458

SHAFT

1шт.

3

8730053

BEARING SET

SET - bearing

1шт.

4

8730467

PIN

2шт.

5

8730475

HOUSING

1шт.

6

700705451

SEAL

SEAL

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

8

145582C1

KIT

- bearing

1шт.

9

N8306

PLATE

- wafer

1шт.

10

A47309

PIN

1шт.

11

8730046

BEARING SET

SET - bearing

1шт.

12

700713459

VALVE

BLOCK - valve

1шт.

13

700713460

PLUG

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

15

700705529

SEAL KIT

KIT - seal

1шт.
