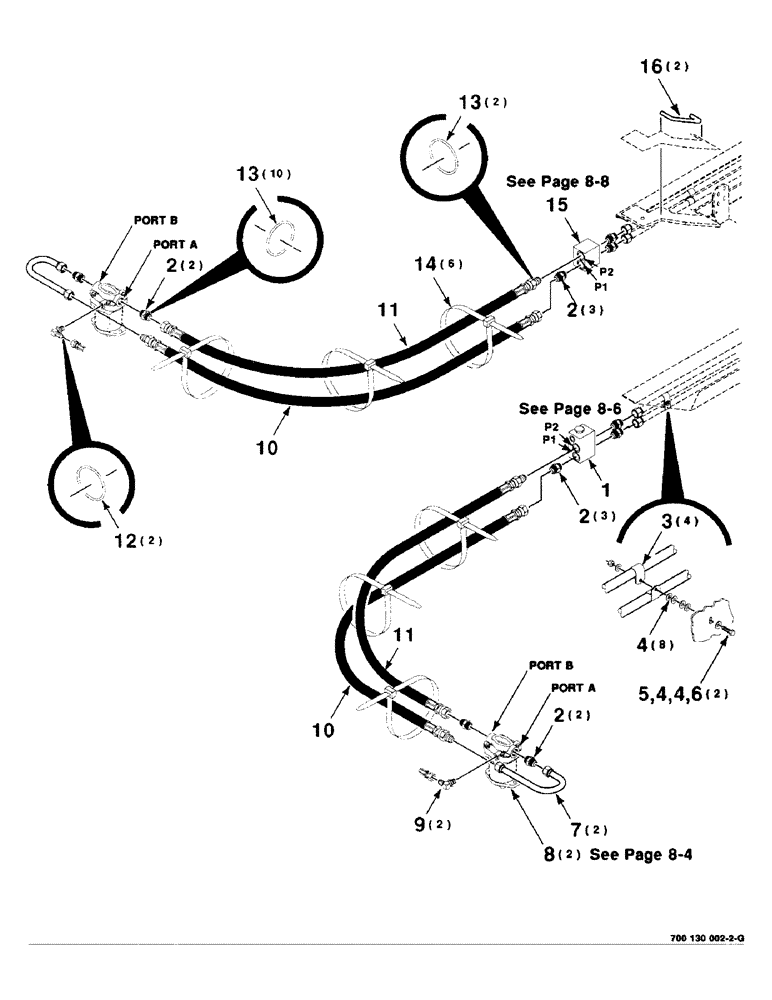

Запчасти Case IH 8850 (08-02) - HEADER DRIVE HYDRAULIC ASSEMBLY, FRONT (08) - HYDRAULICS

1

700713360

VALVE

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight (Incl. item 13) 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

10шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

4шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

7

700713346

TUBE,25.4 mm OD, 171, 114 mm Length

LINE - hydraulic

2шт.

8

700713350

MOTOR

- fixed, hydraulic

2шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy (Includes item 12) 90º, 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

10

700706993

HOSE

ASSEMBLY

2шт.

11

700713358

HYDRAULIC HOSE,1.00" ID x 86.61", SAE 100R1, SAE J517, SAE J516, SAE J343

HOSE - hydraulic (Includes item 13)

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

13

738476

O-RING

12шт.

14

7021728

STRAP

TIE - nylon

6шт.

15

700713351

VALVE

1шт.

16

700105139

GROMMET

2шт.
