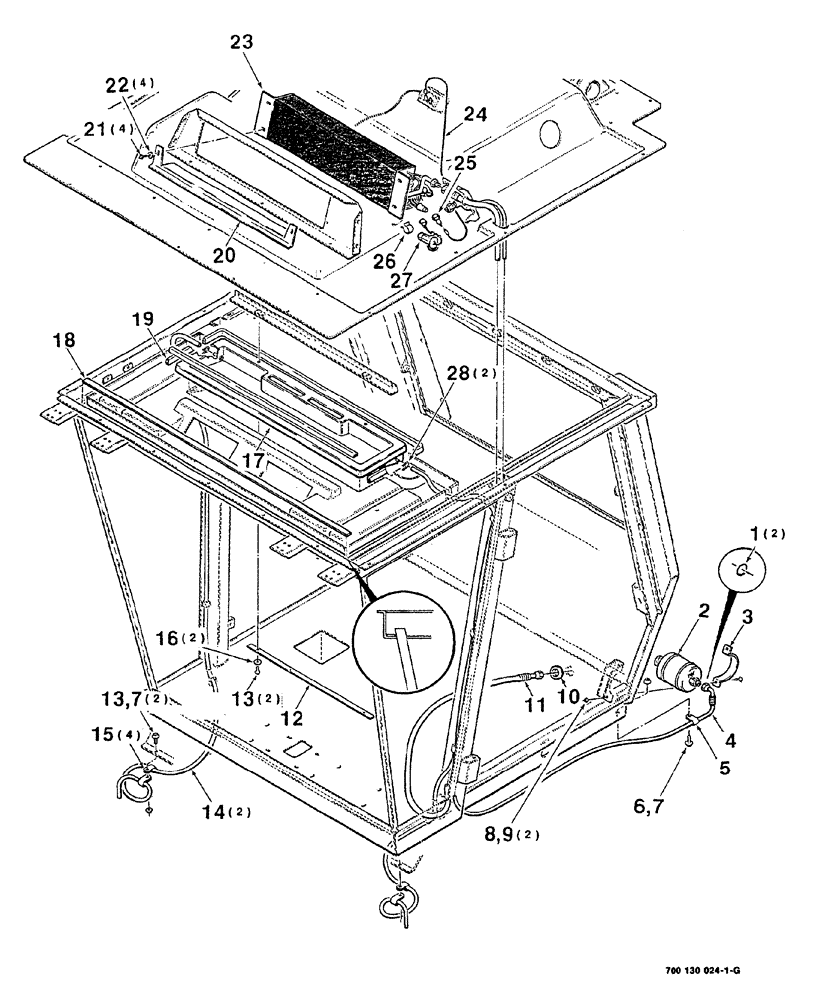

Запчасти Case IH 8840 (07-046) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY (S.N. CFH0031001 THRU CFH0086000) (50) - CAB CLIMATE CONTROL

1

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

2

700705099

RECEIVER-DRYER

RECEIVER/DRYER

1шт.

Part of Hose Assembly, Ref. 4, P/N 700705094.

1шт.

3

6804587

CLAMP

dryer

1шт.

4

700705094

FLEXIBLE HOSE

Includes: Ref. 2

1шт.

5

756460

CLAMP

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

8

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

machine, hex washer head, 1/4"-20 x 1"

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

10

248-2152

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

11

700705098

FLEXIBLE HOSE

1шт.

12

700115437

STRAP

1шт.

13

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

4шт.

14

700110137

HOSE,0.50" ID x 156.10",

Drain

2шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

17

700119893

PAN

ASSEMBLY drain

1шт.

18

6805055

SEAL

12 foot bulk length

1шт.

19

700110139

SEAL

12 foot bulk length

1шт.

20

700120672

PAN

drain

1шт.

21

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

22

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

4шт.

23

700706905

EVAPORATOR

CORE

1шт.

24

700706889

WIRE

electrical

1шт.

25

700706904

PRESSURE SWITCH

low pressure

1шт.

26

8020398

CLAMP

spring

1шт.

27

66398C1

VALVE

expansion

1шт.

28

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.
