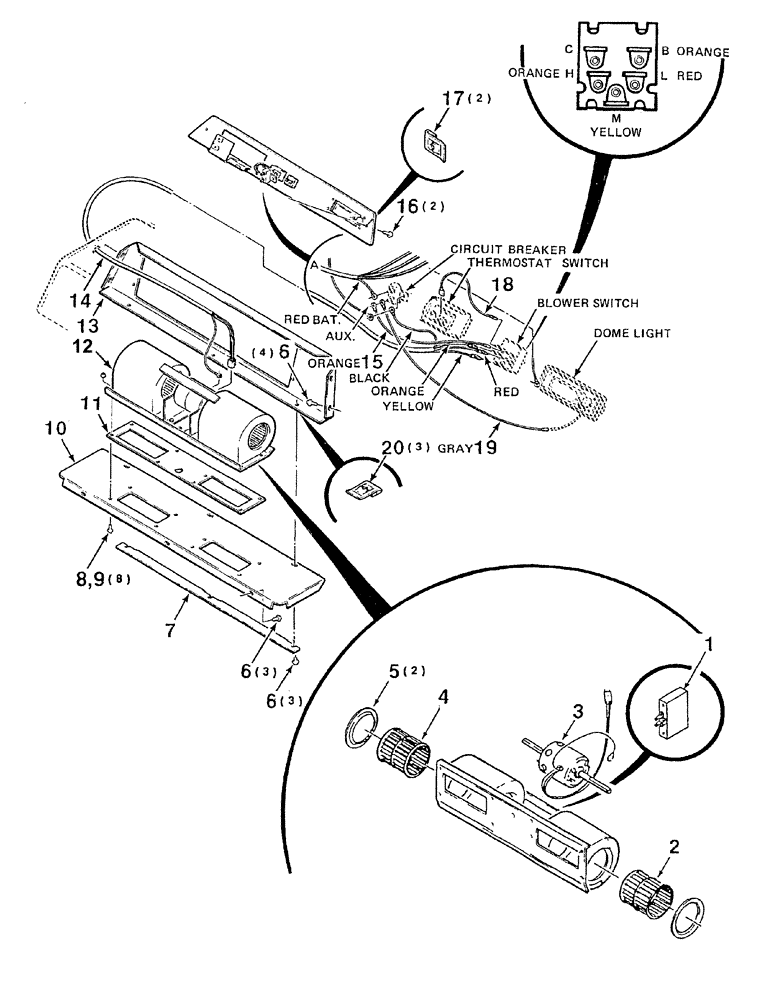

Запчасти Case IH 8840 (04-020) - CAB BLOWER ASSEMBLY (50) - CAB CLIMATE CONTROL

1

1255876C1

RESISTOR

1шт.

Part of Fan Assembly, Ref. 12, P/N 700710548.

1шт.

2

7025869

BLOWER

WHEEL left

1шт.

Part of Fan Assembly, Ref. 12, P/N 700710548.

1шт.

3

700713942

MOTOR

blower

1шт.

Part of Fan Assembly, Ref. 12, P/N 700710548.

1шт.

4

7025877

BLOWER,Fan

blower, right

1шт.

Part of Fan Assembly, Ref. 12, P/N 700710548.

1шт.

5

1344175C1

RETAINER

RING inlet

2шт.

Part of Fan Assembly, Ref. 12, P/N 700710548.

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

10шт.

7

700115094

RETAINER

1шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

serrated, hex flange, 1/4"-20 x 3/4"

8шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

10

700110136

COVER

blower

1шт.

11

8020273

SEAL

blower

1шт.

12

700710548

FAN

ASSEMBLY, Inc. 1 - 5

1шт.

13

700110135

BULKHEAD

evaporator

1шт.

14

700710547

WIRE HARNESS

wire

1шт.

15

700705126

WIRE

electrical

1шт.

16

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

machine, hex washer head, 1/4"-20 x 1"

2шт.

17

700705135

NUT

speed, 1/4"-20

2шт.

18

8799462

ELECTRICAL WIRE

WIRE electrical

1шт.

19

700705122

WIRE

electrical

1шт.

20

131-637

SPRING NUT,Ret, J, 5/16"-18

Speed

3шт.
