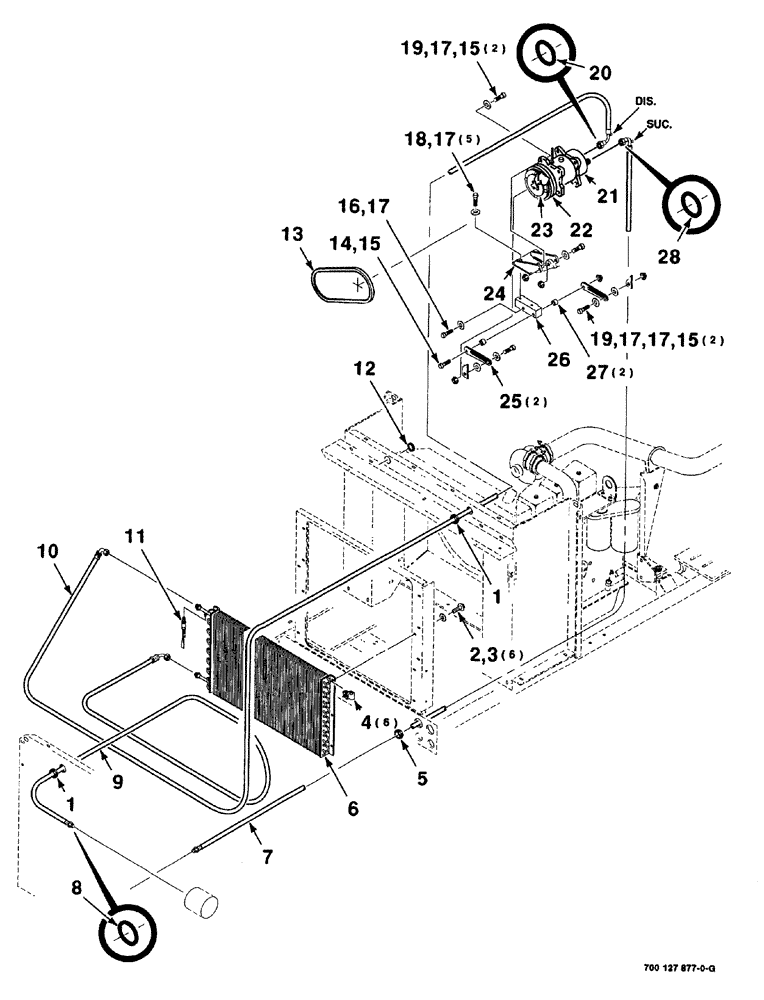

Запчасти Case IH 8840 (02-016) - CONDENSOR/COMPRESSOR ASSEMBLY (S.N. CFH0086315 AND LATER) (134A REFRIGERANT) (50) - CAB CLIMATE CONTROL

1

248-2152

GROMMET,1" ID x 1 3/8" Groove Dia

2шт.

2

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

3

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

6шт.

4

74807

NUT

speed, 1/4"-20

6шт.

5

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

6

700712702

CONDENSER

1шт.

7

700713318

HOSE

ASSEMBLY, Includes: Ref. 28

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

Part of Hose Assembly, Ref. 9, P/N 700712708.

1шт.

9

700712708

HOSE

ASSEMBLY, Includes: Ref. 8

1шт.

10

700713320

HOSE

ASSEMBLY, Includes: Ref. 20

1шт.

11

7722929

SWITCH

pressure

1шт.

12

700708527

PLUG

1шт.

13

700709214

V-BELT,1117.60 mm L

1шт.

14

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

cap, hex, M10 x 1.5 x 95

1шт.

15

832-41310

NUT,M10 x 1.5, Cl 10

Hex center

5шт.

16

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Hardened

12шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

19

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

20

700712718

O-RING

1шт.

Part of Hose Assembly, Ref. 10, P/N 700713320.

1шт.

21

1999755C3

COMPRESSOR

Includes: Ref. 22 and 23

1шт.

21

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

21

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

21

86993462R

REMAN-COMPRESSOR

8840 (S.N. CFH0086315 AND LATER); Reman For New P/N 1999755C3

1шт.

21

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

21

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

21

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

22

83935C1

CLUTCH

ASSEMBLY

1шт.

Part of Compressor, Ref. 21, P/N 1999755C3.

1шт.

23

700712769

SHIELD

dust, armature

1шт.

Part of Compressor, Ref. 21, P/N 1999755C3.

1шт.

24

700119647

MOUNTING PARTS

SUPPORT, WA compressor

1шт.

25

700119652

STRAP

adjust

2шт.

26

700119650

SUPPORT

compressor

1шт.

27

6606594

BUSHING

SPACER

2шт.

28

31-1809

O-RING

O-RING

1шт.

Part of Hose Assembly, Ref. 7, P/N 700713318.

1шт.
