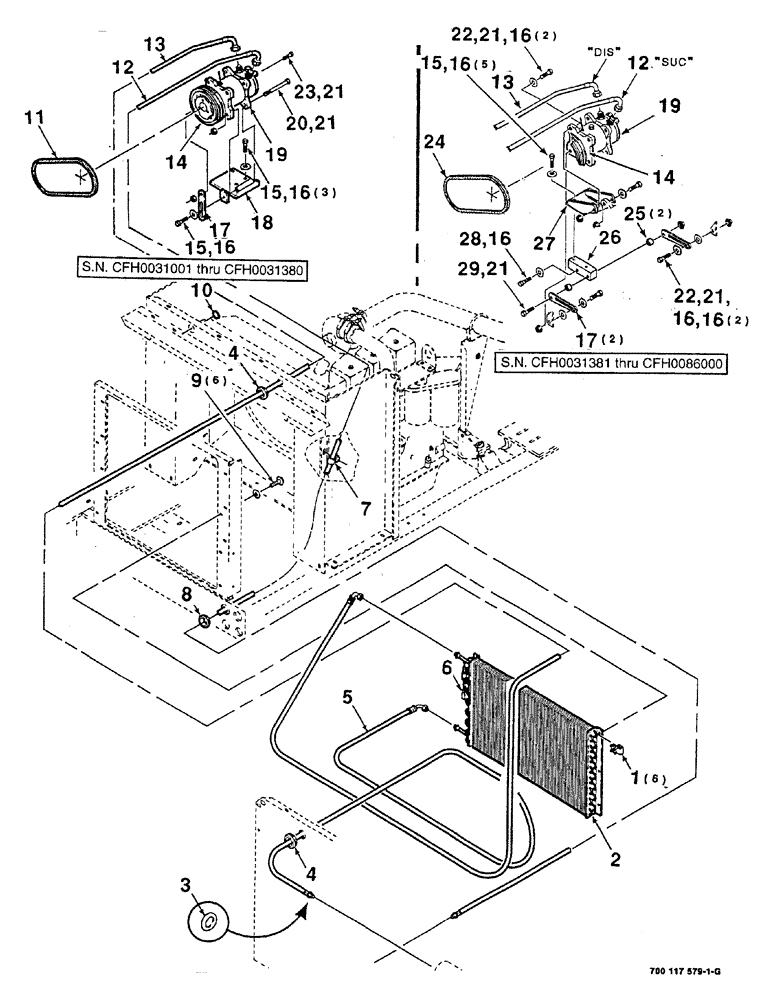

Запчасти Case IH 8840 (02-012) - CONDENSER/COMPRESSOR ASSEMBLY (R-12 REFRIGERANT) (50) - CAB CLIMATE CONTROL

1

74807

NUT

speed, 1/4"-20

6шт.

2

700707093

CONDENSER

CONDENSER

1шт.

3

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

4

248-2152

GROMMET,1" ID x 1 3/8" Groove Dia

2шт.

5

700707089

FLEXIBLE HOSE

1шт.

6

7722929

SWITCH

pressure

1шт.

7

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

8

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

9

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

10

700708527

PLUG

1шт.

11

235414A1

BELT,12.70 mm W x 901.70 mm L

1шт.

S.N. CFH0031001 thru CFH0031380.

1шт.

12

700708528

HOSE

ASSEMBLY

1шт.

13

700708530

HOSE ASSY.

1шт.

14

700709771

CLUTCH

ASSEMBLY

1шт.

Part of A/C Compressor, Ref. 19, P/N 7807944.

1шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

9шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Hardened

16шт.

17

700119652

STRAP

adjustment

1шт.

18

700117969

SUPPORT

MOUNTING

1шт.

S.N. CFH0031001 thru CFH0031380.

1шт.

19

7807944

AIRCOND. COMPRESSOR

A/C, Includes: Ref. 14

1шт.

7807944R

REMAN-ANEROID

8840 - CASE IH SELF-PROPELLED WINDROWER TRACTOR (R-12 REFRIGERANT)

1шт.

7807944C

CORE-COMPRESSOR

Return Number

1шт.

20

700708224

SCREW

cap, hex, M10 x 1.5 x 120

1шт.

21

832-41310

NUT,M10 x 1.5, Cl 10

Hex center

7шт.

22

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

24

700709214

V-BELT,1117.60 mm L

1шт.

S.N. CFH0031381 and later.

1шт.

25

6606594

BUSHING

SPACER

2шт.

26

700119650

SUPPORT

block, compressor

1шт.

S.N. CFH0031381 and later.

1шт.

27

700119647

MOUNTING PARTS

SUPPORT compressor

1шт.

S.N. CFH1131381 and later.

1шт.

28

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

29

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

cap, hex, M10 x 1.5 x 95

1шт.
