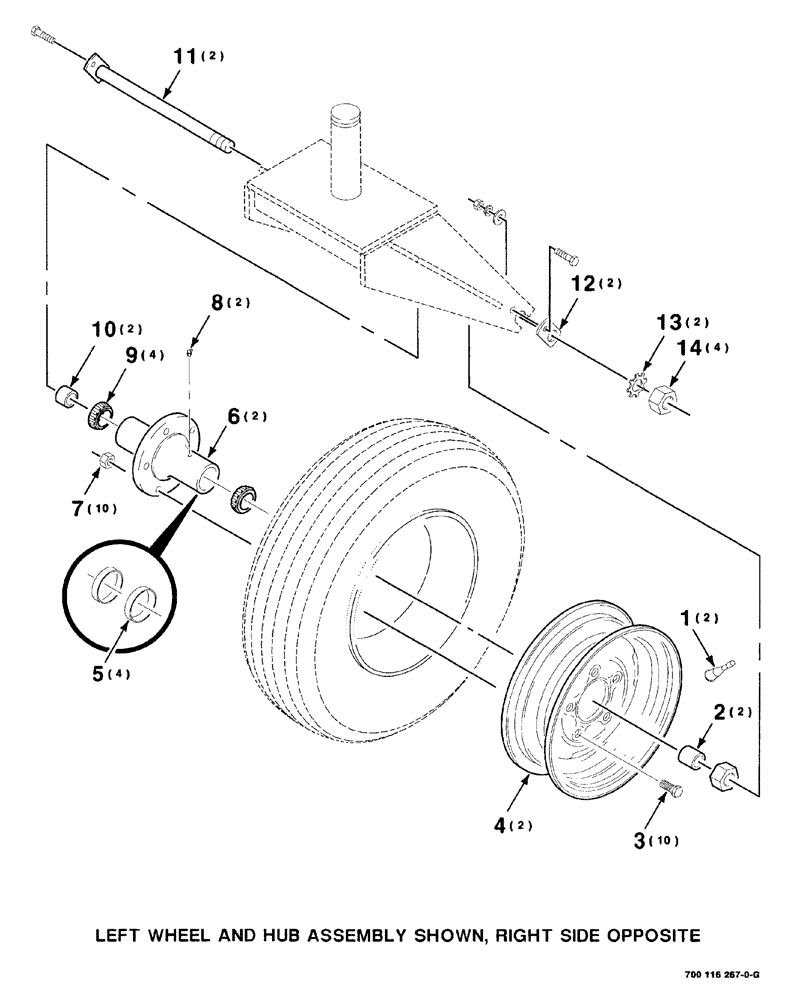

Запчасти Case IH 8840 (07-054) - TAIL WHEEL AND HUB ASSEMBLY (44) - WHEELS

1

A38261

VALVE

STEM

2шт.

2

328237

TUBE,1.5" OD, 1.531" Length

2шт.

3

T52730

WHEEL BOLT

wheel, 9/16"-18

10шт.

4

700708043

RIM

WHEEL 15 x 8 LB

2шт.

5

50104

BEARING CUP,50.01mm OD

cup

4шт.

Part of Hub Assembly, Ref. 6, P/N 6617278.

1шт.

6

6617278

HUB ASSY.

Includes: Ref. 5

2шт.

7

425-119

NUT,Hex, 9/16"-18, G5

10шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

ZERK, 1/4"-28 x 45°

2шт.

9

51805

ROLLER BEARING,25.4mm ID

BEARING

4шт.

10

700101125

SPACER

2шт.

11

700116268

SHAFT

WA axle

2шт.

12

305581

CLIP

2шт.

13

193-17

LOCK WASHER,Ext Tooth, 1"

2шт.

14

425-1516

JAM NUT,Jam, 1"-14, G5

HJN, 1"-14

4шт.
