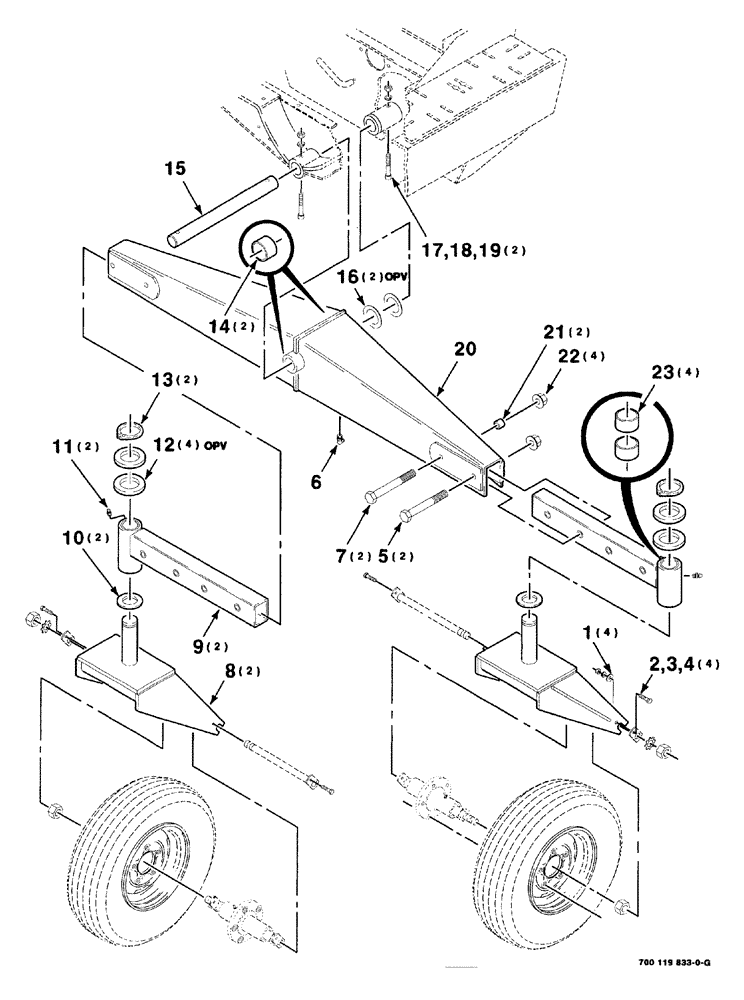

Запчасти Case IH 8840 (07-052) - TAIL WHEEL ASSEMBLY (44) - WHEELS

1

496-81010

WASHER

plain, wide, hardened, 3/8"

4шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

326-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 8

2шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

7

26-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 8

hex, 7/8"-9 x 7", grade 8

2шт.

8

700115621

FORK

WA

2шт.

9

700118797

AXLE

WA rear, Includes: Ref. 23

2шт.

10

6268841

WASHER

2шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

12

852947

BUSHING

machinery, narrow rim, 2-1/4" x 14 gauge

4шт.

13

103-11225

SNAP RING,#225, Ext

2шт.

14

852491

BRONZE BUSHING

BRONZE BUSH

2шт.

Part of Walking WA Beam, Ref.20, P/N 700118694.

1шт.

15

6270219

SHAFT

1шт.

16

52548

SPECIAL WASHER

BUSHING machinery, narrow rim, 2" x 14 gauge

2шт.

17

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

cap, hex socket head, SPL, 1/2"-13 x 3-1/4"

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

700118694

BEAM

WA walking, Includes: Ref. 14

1шт.

21

700118801

BUSHING

TUBE

2шт.

22

232-53114

FLANGE NUT,Flg, 7/8"-9

lock, hex flange top, 7/8"-9, grade/G

4шт.

23

852921

BRONZE BUSHING

BEARING bronze

4шт.

Part of Rear WA Axle, Ref. 9, P/N 700118797.

1шт.
