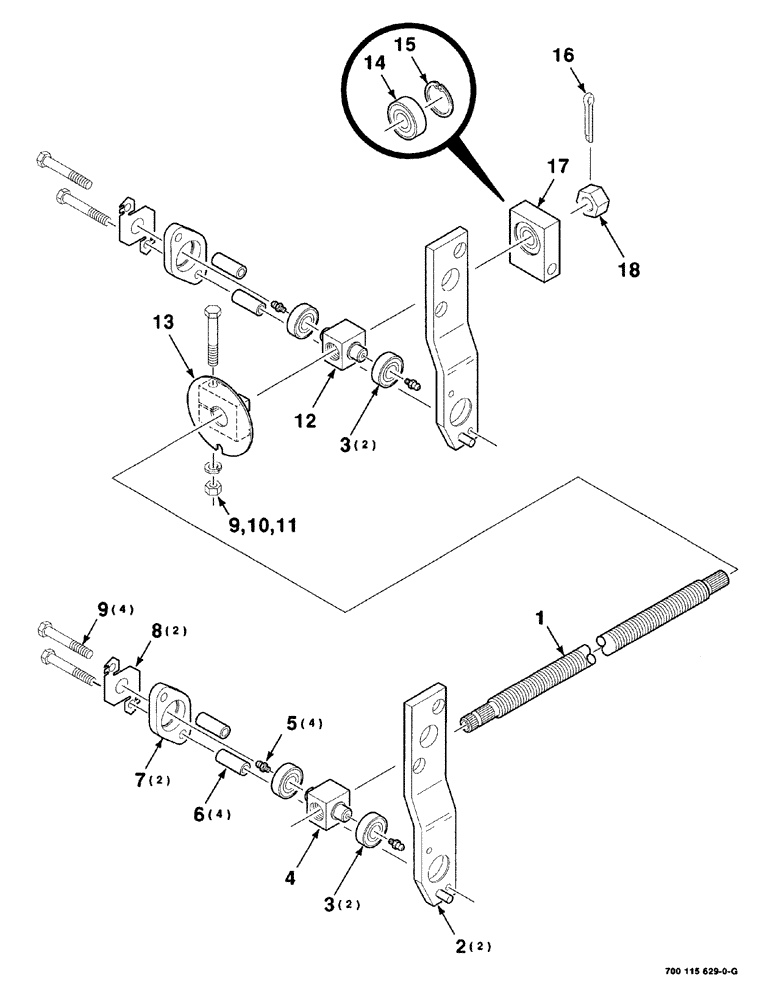

Запчасти Case IH 8840 (05-012) - STEERING ASSEMBLY (41) - STEERING

1

700115632

SHAFT

1шт.

2

700111129

ARM

steering

2шт.

3

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

radial

4шт.

4

700111134

HOUSING

right hand thread

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

6

700111144

SPACER

4шт.

7

700111143

FLANGE

2шт.

8

700111044

COVER PLATE

locking

2шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

5шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

700111133

HOUSING

left hand thread

1шт.

13

700111145

DISC

WA

1шт.

14

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

1шт.

Part of Bearing Housing Assembly, Ref. 17, P/N 700115630.

1шт.

15

100-21175

SNAP RING,1.75", Int, #175

1шт.

Part of Bearing Housing Assembly, Ref. 17, P/N 700115630.

1шт.

16

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

17

700115630

BEARING ASSY

bearing, Includes: Ref. 14 and 15

1шт.

18

425-1012

NUT,3/4"-10, G5

1шт.
