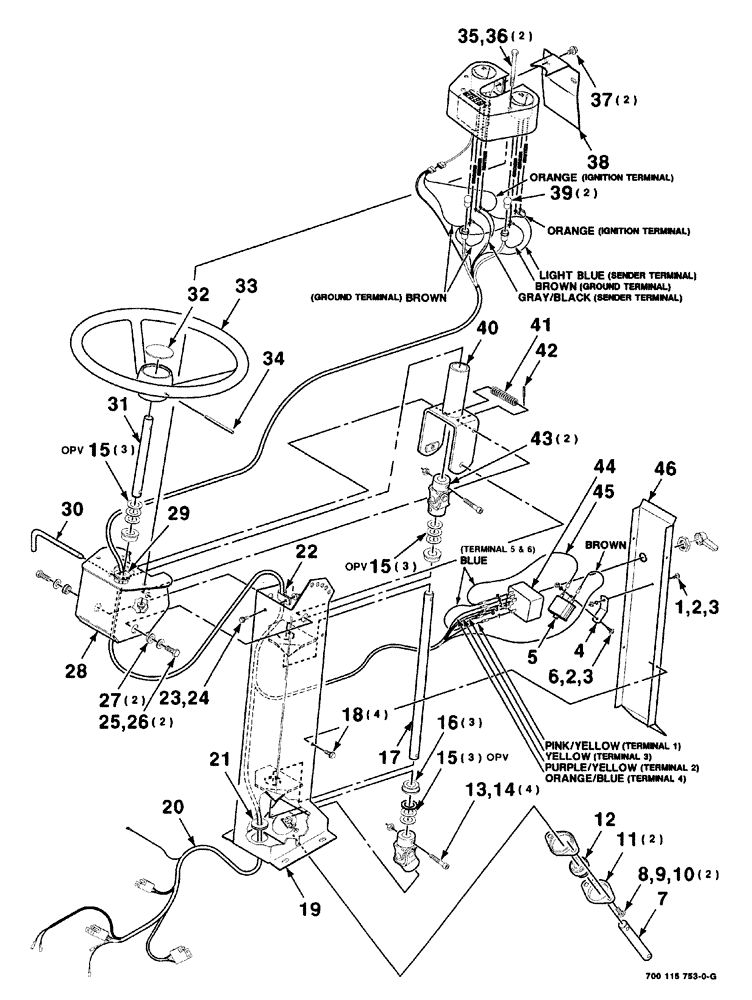

Запчасти Case IH 8840 (04-002) - STEERING COLUMN ASSEMBLY (41) - STEERING

1

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

Grade 60M

1шт.

2

492-11010

LOCK WASHER,#10

2шт.

3

225-14110

NUT,#10-24

2шт.

4

700111196

MOUNTING PLATE

buzzer

1шт.

5

299985A1

BUZZER

1шт.

6

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan head, cross recess, No. 10-24 x 1/2", grade 60M

1шт.

7

700111072

SHAFT

1шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

469924R1

FLANGE

2шт.

12

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

spherical

1шт.

13

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

cap, socket head, hex, SPL, 5/16"-18 x 1-3/4"

4шт.

14

230-4215

NUT,5/16"-18, GA

Center

4шт.

15

52183

BUSHING

machinery, narrow rim, 3/4" x 18 gauge

9шт.

16

700705557

BUSHING

3шт.

17

700111071

SHAFT

1шт.

18

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

tapping, thread cutting, hex washer head, 1/4"-20 x 1/2"

4шт.

19

700111056

CHANNEL

WA post, steering

1шт.

20

700706892

WIRE HARNESS

flasher

1шт.

21

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

22

751321

CLAMP

line

1шт.

23

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

2шт.

27

700705555

BUSHING

2шт.

28

700115754

COVER

WA upper

1шт.

29

248-1151

GROMMET,7/8" ID x 1 1/4" Groove Dia

1шт.

30

700111068

ROD

handle

1шт.

31

700111067

SHAFT

1шт.

32

775825

PLASTIC

LENS

1шт.

33

7845050

WHEEL (STEERING)

1шт.

34

38-11640

LOCK PIN,1/4" x 2 1/2", Slotted

1/4" x 2 1/2", Slotted

1шт.

35

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

hex, 5/16"-18 x 3-1/4"

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

37

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

38

700114800

COVER

lower

1шт.

39

B50213

BULB

LAMP

2шт.

40

700111064

YOKE

WA

1шт.

41

7758139

SPRING

compression

1шт.

42

38-31016

PIN,5/32" x 1", Coiled

1шт.

43

700705553

UNIVERSAL JOINT

2шт.

44

700706894

FLASHER SWITCH

turn and flasher

1шт.

45

700707055

WIRE HARNESS

WIRE

1шт.

46

700111066

COVER

1шт.
