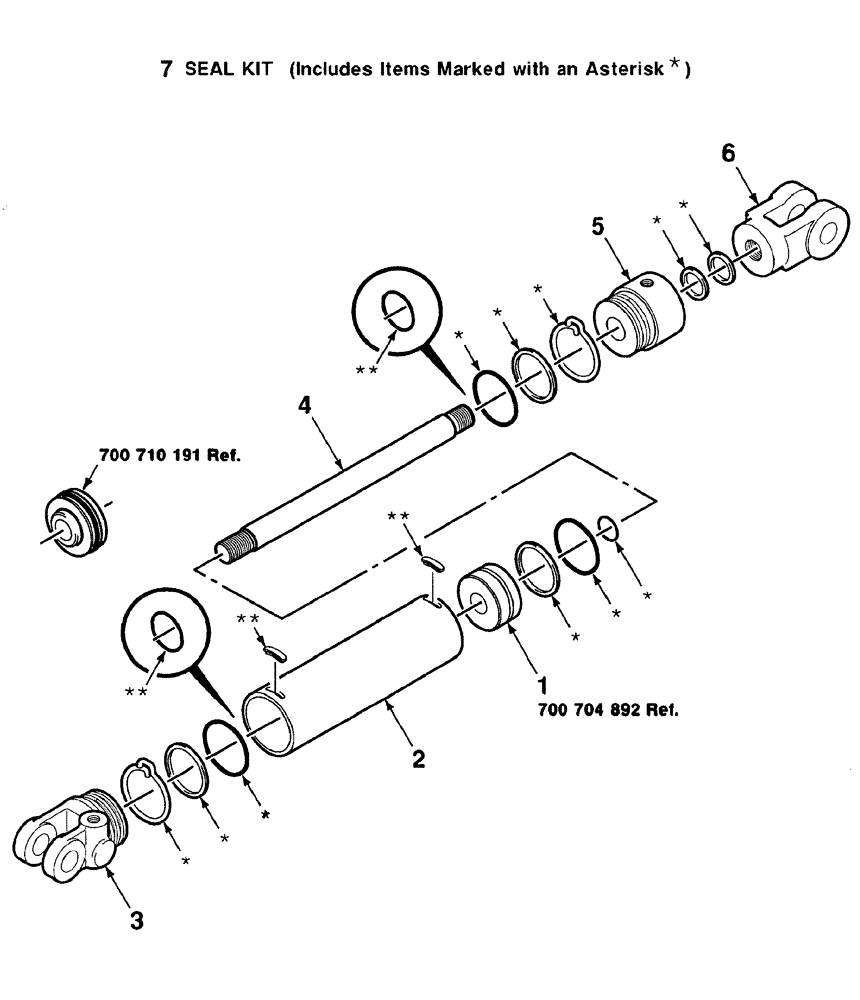

Запчасти Case IH 8840 (09-030) - HYDRAULIC CYLINDER ASSEMBLY (FLOTATION, LEFT) (35) - HYDRAULIC SYSTEMS

700704570

HYDRAULIC CYLINDER

hydraulic, complete, 2-1/2" bore x 8" stroke

1шт.

P/N 700712017 interchanges with P/N 700704570, but existing stock of P/N 700704570 should be used prior to ordering P/N 700712017.

1шт.

700712017

CYLINDER

hydraulic, complete, 2-1/2" bore x 8" stroke

1шт.

P/N 700712017 interchanges with P/N 700704570, but P/N 700712017 must be stocked for it's respective effectivity.

1шт.

1

102905A1

PISTON

cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

700704894

CYLINDER HEAD

1шт.

4

102907A1

ROD

piston

1шт.

5

102909A1

BEARING

cylinder rod

1шт.

6

102908A1

END

CLEVIS rod

1шт.

7

H673838

SEAL

repair, seal and O-ring, Includes items in art marked with an asterisk

1шт.
