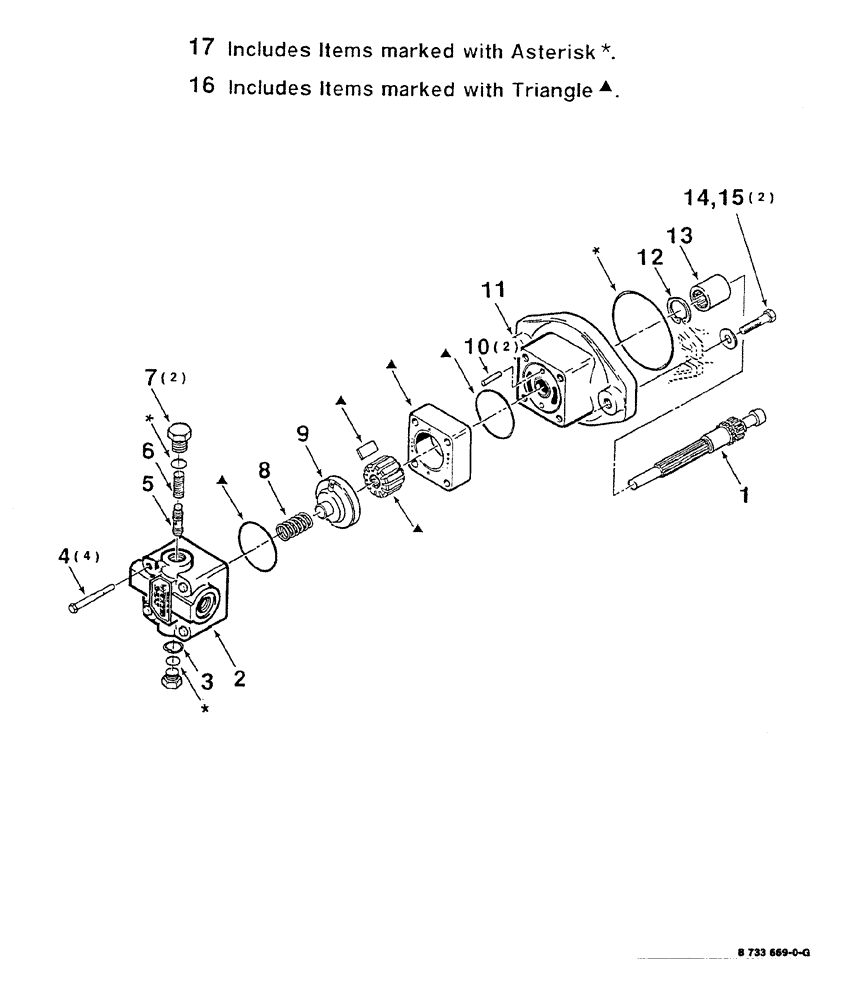

Запчасти Case IH 8840 (08-056) - VANE PUMP ASSEMBLY (HYDROSTATIC TRANSMISSION) (35) - HYDRAULIC SYSTEMS

8733669

PUMP

ASSEMBLY vane, complete

1шт.

1

149708C1

SHAFT

pump, not included with 8733669 vane pump assembly

1шт.

2

8732604

CYLINDER

COVER

1шт.

3

7033780

RING, SNAP

RING SNAP retaining

1шт.

4

7039159

SCREW

cap, hex, 3/8"-16 x 3-3/4", grade 8

4шт.

5

L33718

VALVE

control

1шт.

6

D46216

SPRING

1шт.

7

214389

PLUG,3/4" - 16 ORB

2шт.

8

7033764

SPRING

1шт.

9

7033756

PLATE

pressure

1шт.

10

7039167

PIN

2шт.

11

8730335

BODY

1шт.

12

8730285

COVER

RING retaining, not included with 8733669 vane pump assembly

1шт.

13

149709C1

COUPLING

not included with 8733669 vane pump assembly

1шт.

14

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

2шт.

16

8730277

KIT

cartridge, Includes all items in art marked with a triangle

1шт.

17

700705452

SEAL KIT

KIT repair, Includes all items in art marked with an asterisk

1шт.
