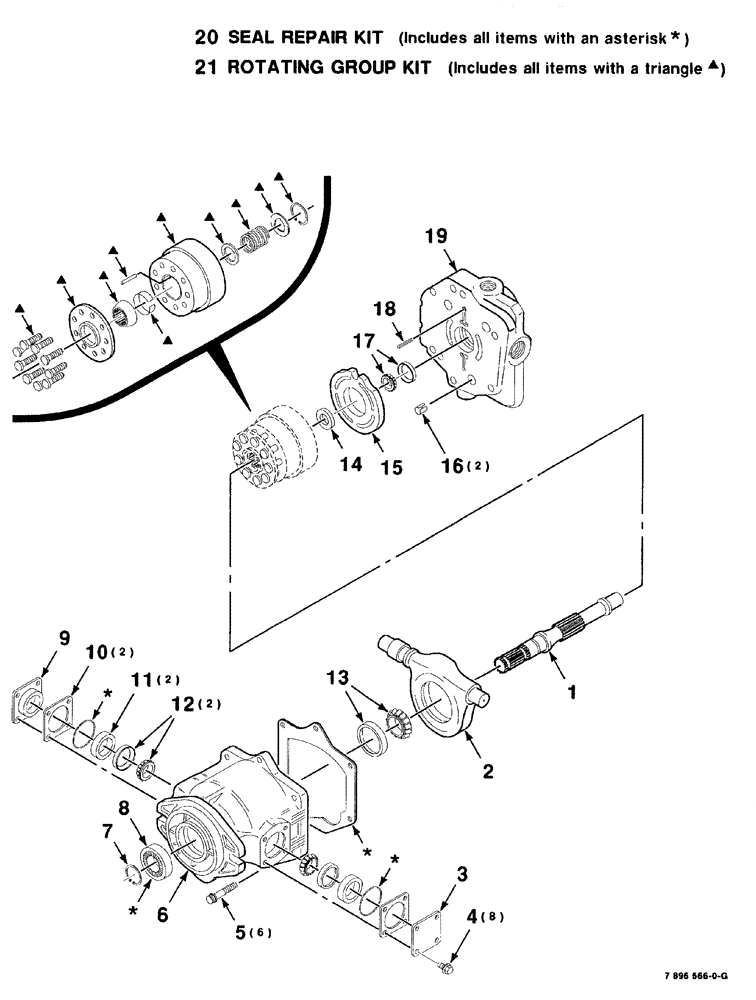

Запчасти Case IH 8840 (08-052) - HYDROSTATIC TRANSMISSION ASSEMBLY (35) - HYDRAULIC SYSTEMS

7896566

MOTOR, HYDRAULIC

ASSEMBLY transmission, hydrostatic, complete

1шт.

1

8732711

SHAFT

1шт.

2

N8292

YOKE

UNIVERSAL JOINT YOKE

1шт.

3

A47288

COVER

1шт.

4

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

8шт.

5

380-2624

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

flange, 12 point

6шт.

6

N8293

HOUSING

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

1шт.

8

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

1шт.

9

N8294

COVER

pintle

1шт.

10

145590C1

SHIM KIT

2шт.

11

A47286

SPACER

SPACER

2шт.

12

1263241C1

WHEEL BEARING KIT

SET bearing

2шт.

13

8730053

BEARING SET

1шт.

14

145582C1

KIT

spacer

1шт.

15

N8306

PLATE

wafer, right

1шт.

16

A47301

PIN

roll

2шт.

17

8730046

BEARING SET

1шт.

18

A47309

PIN

roll

1шт.

19

8732703

PLATE

BLOCK valve

1шт.

20

700705449

SEAL KIT

KIT, Includes all items in art marked with an asterisk

1шт.

21

8732737

ROD

KIT rotating group, Includes all items in art marked with a triangle

1шт.
