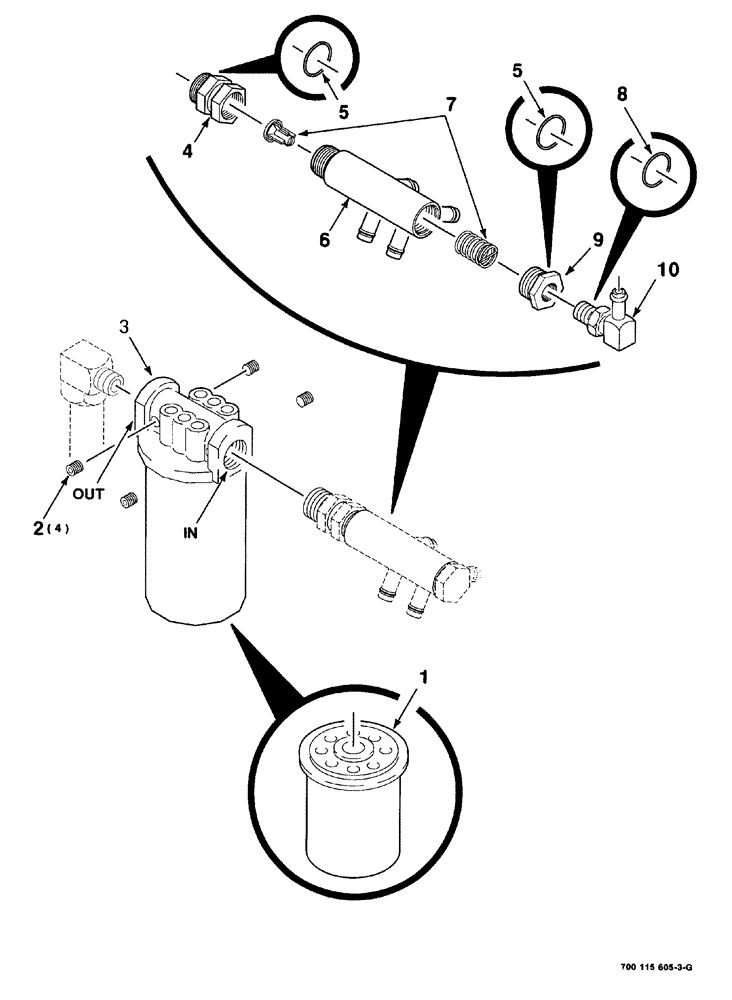

Запчасти Case IH 8840 (08-048) - MANIFOLD AND OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

7738743

FILTER

KIT element

1шт.

2

046797

PLUG

pipe, national pipe taper fuel, 1/8"-27

4шт.

3

8042574

FILTER ASSY

oil, hydraulic

1шт.

4

218-5259

HYD CONNECTOR,1 5/8"-12 Male ORB x 1 1/4" NPSM Fem Sw

ADAPTOR swivel, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

Part of Swivel Adaptor, Ref. 4, P/N 218-5259.

1шт.

Part of O-ring Plug, Ref. 9, P/N 8746521.

1шт.

6

6829410

MANIFOLD

1шт.

7

8040669

VALVE POPPET

KIT spring

1шт.

8

738484

O-RING

1шт.

Part of Barbed Insert, Ref. 10, P/N 217-351.

1шт.

9

8746521

REDUCER

PLUG, O-ring, Includes: Ref. 5

1шт.

10

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

INSERT barbed, Incl. Ref. 8

1шт.
