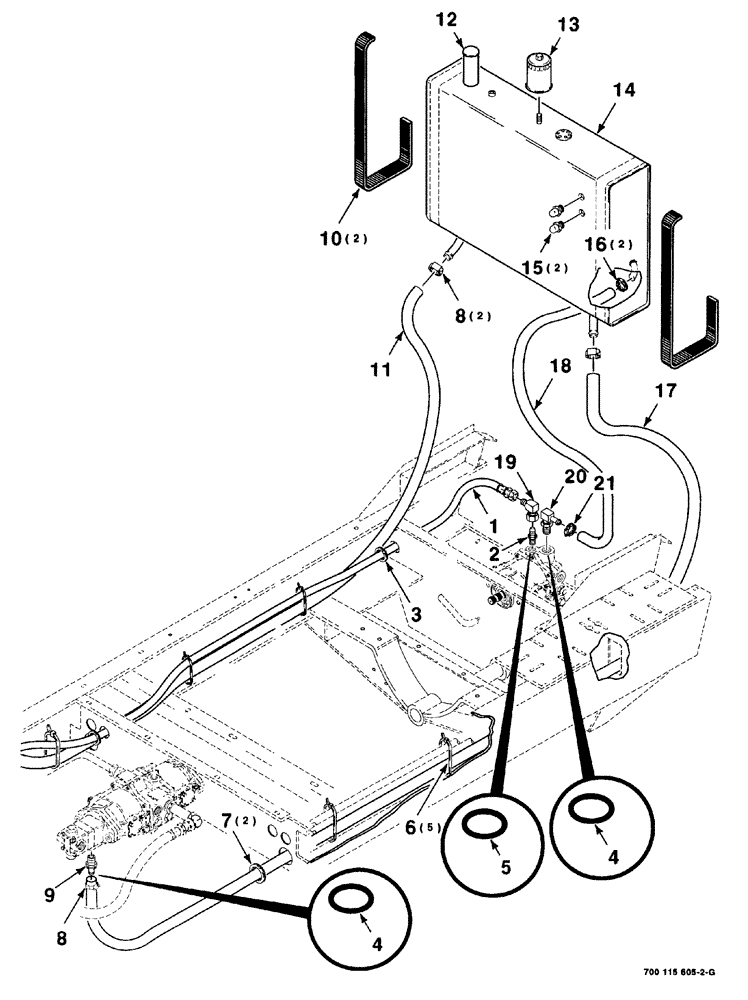

Запчасти Case IH 8840 (08-044) - HYDRAULIC RESERVOIR ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700706948

HOSE

hydraulic

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 5

1шт.

3

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

4

738476

O-RING

2шт.

Part of Connector, Ref. 9, P/N 6829386.

1шт.

Part of Elbow, Ref. 20, P/N 217-352.

1шт.

5

738484

O-RING

1шт.

Part of Flarred Connector, Ref. 2, P/N 218-5064.

1шт.

6

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

5шт.

7

6511695

GROMMET

2шт.

8

700706943

CLAMP

3шт.

9

6829386

FITTING

CONNECTOR, Includes: Ref. 4

1шт.

10

700120658

LINER

felt

2шт.

11

700114974

HOSE ASSY.

1шт.

12

700707293

CAP

tank

1шт.

13

7825516

FILTER

1шт.

14

700706944

RESERVOIR, HYDRAULIC

1шт.

15

8799439

GAUGE

SIGHT BULB

2шт.

8799439

GAUGE

SIGHT BULB

4шт.

16

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

17

7896574

HYDRAULIC HOSE,31.75 mm ID x 2337.00 mm, SAE 100R4, SAE J517, SAE J343

1шт.

18

7896632

HYDRAULIC HOSE,25.40 mm ID x 242.00 mm, SAE 100R3

hydraulic

1шт.

19

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

20

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90°, Includes: Ref. 4

1шт.

21

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.
