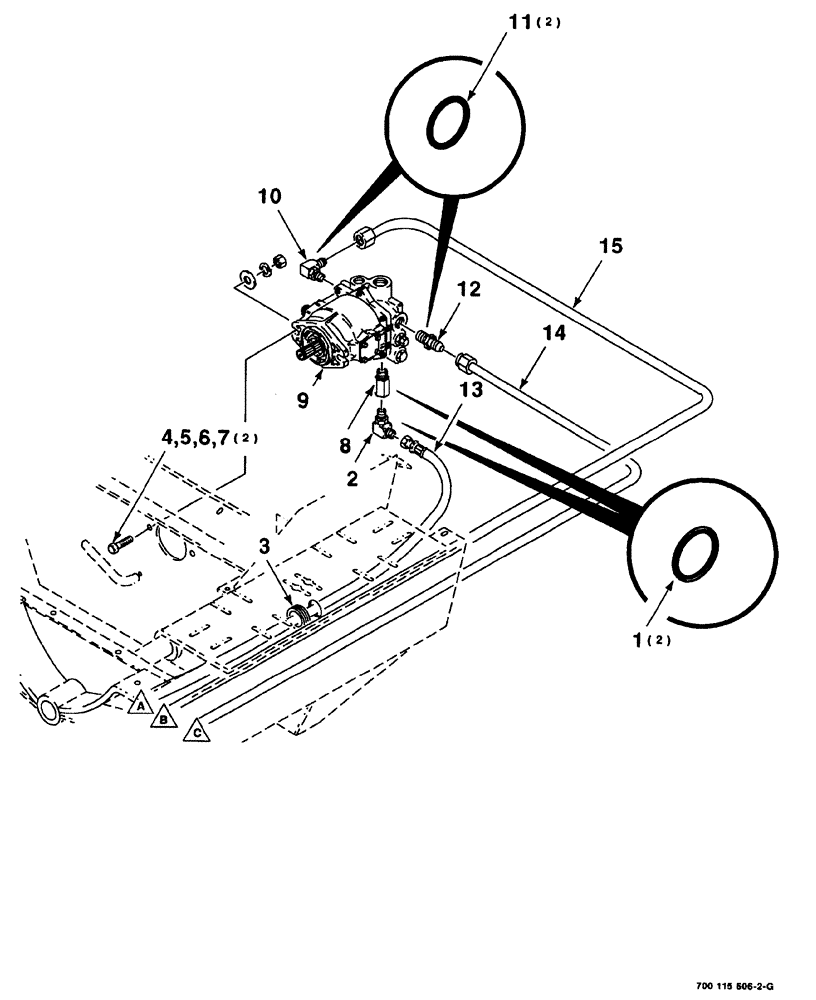

Запчасти Case IH 8840 (08-040) - HEADER DRIVE ASSEMBLY (REAR) (35) - HYDRAULIC SYSTEMS

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

Part of O-ring Elbow, Ref. 2, P/N 218-5107.

1шт.

Part of Check Valve, Ref. 8, 7896541.

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 1

1шт.

3

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

2шт.

8

7896541

VALVE

check, Includes: Ref. 1

1шт.

9

700706979

HYDRAULIC PUMP

see Figure 08-042

1шт.

700706979R

REMAN-HYD PUMP

8840 - CASE IH SELF-PROPELLED WINDROWER TRACTOR

1шт.

700706979C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 11

1шт.

11

738476

O-RING

2шт.

Part of O-ring Elbow, Ref. 10, P/N 218-5110.

1шт.

Part of Straight Connector, Ref. 12, P/N 218-5069.

1шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Incl. Ref. 11

1шт.

13

700706991

HOSE

hydraulic

1шт.

14

700706981

FLEXIBLE HOSE

hydraulic

1шт.

15

700706980

RIGID TUBE

hydraulic

1шт.
