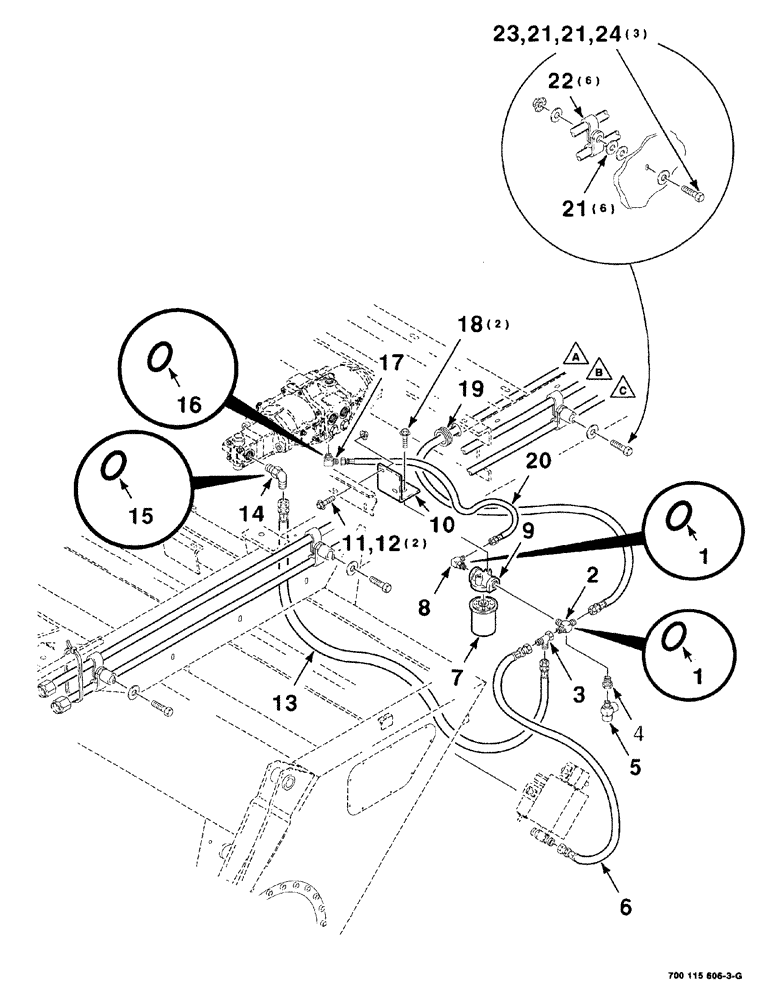

Запчасти Case IH 8840 (08-038) - HEADER DRIVE (PUMP AND FILTER) ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

738484

O-RING

2шт.

Part of Tee, Ref. 2, P/N 700114940.

1шт.

Part of Fitting, Ref. 8, P/N 218-5108.

1шт.

2

700114940

3 WAY CONNECTION

TEE, Includes: Ref. 1

1шт.

3

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

4

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing pipe

1шт.

5

7846041

FITTING

tee

1шт.

6

700706976

FLEXIBLE HOSE

1шт.

7

8040461

FILTER

ELEMENT

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 1

1шт.

9

8843260

FILTER

HEAD

1шт.

10

6827224

ANGLE

mounting

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

700701605

FLEXIBLE HOSE

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Connector, Ref. 14, P/N 218-5106.

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of O-ring Elbow, Ref. 17, P/N 218-5107.

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 16

1шт.

18

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

19

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

20

8843054

HOSE

hydraulic

1шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

12шт.

22

515-23254

CLAMP,1", Insul, 3/8" Bolt

6шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

24

231-4116

NUT,3/8"-16, GB

lock, hex top, 3/8"-16, grade/B

3шт.
