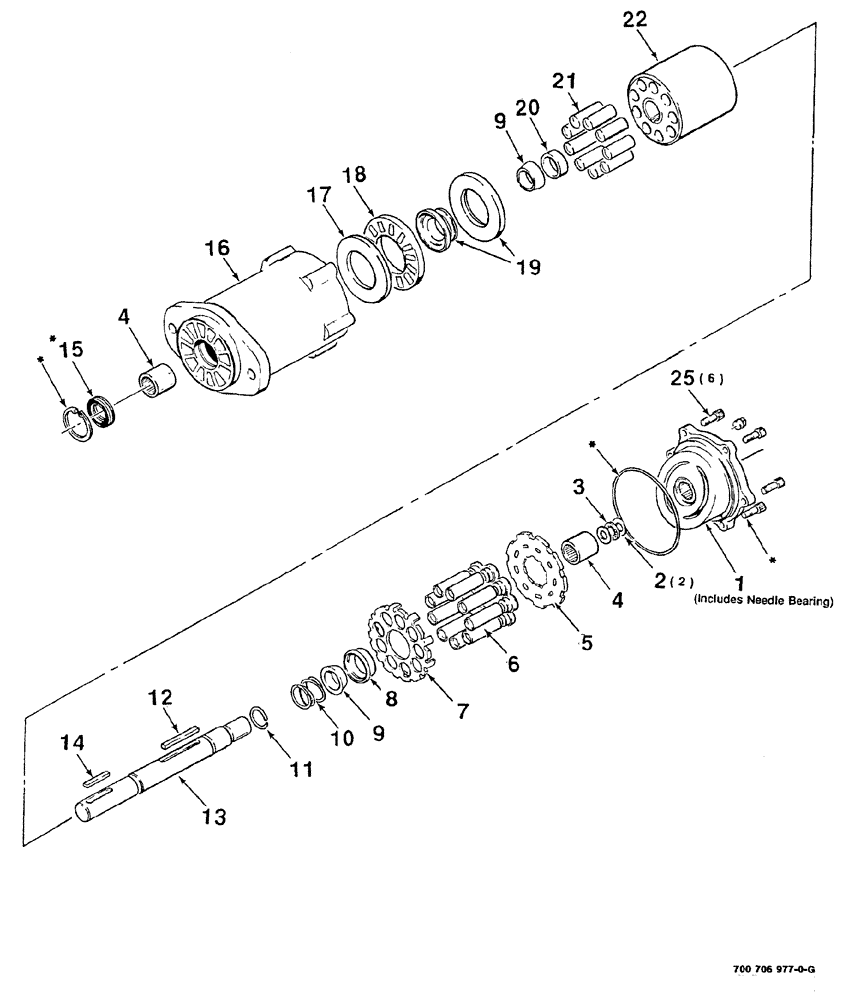

Запчасти Case IH 8840 (08-036) - HYDROSTATIC MOTOR ASSEMBLY (35) - HYDRAULIC SYSTEMS

700706977

HYDRAULIC MOTOR

hydrostatic, high torque, complete

1шт.

700728299R

REMAN-HYD MOTOR

8840, Reman for New P/N 700706977

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

1

D80511

PLATE

ASSEMBLY back, Includes: Ref. 4

1шт.

2

N9977

WASHER, THRUST

RACE

2шт.

3

D63334

THRUST BEARING,0.569" ID x 0.99" OD x 0.0781"

thrust

1шт.

4

D80554

NEEDLE BEARING CAGE

2шт.

Part of Back Plate Assembly, Ref. 1, P/N D80511.

1шт.

Part of Housing Assembly, Ref. 16, P/N D80510.

1шт.

5

D63342

PLATE

connector

1шт.

6

7035850

PISTON

KIT repair, tubular, includes 9 pistons

1шт.

7

D63339

LARGE PLATE

PLATE, LARGE SPIDER

1шт.

8

D75512

TUBE

PILOT

1шт.

9

D63338

PIVOT

CONE

2шт.

10

D75822

SPRING

1шт.

11

D63346

RING

retainer

1шт.

12

D63340

KEY

1шт.

13

700707327

SHAFT

1шт.

14

7035967

KEY

1шт.

15

700707333

SEAL KIT

KIT repair, Includes items in art marked with an asterisk

1шт.

16

D80510

HOUSING

ASSEMBLY, Includes: Ref. 4

1шт.

17

D63331

BEARING WASHER,2.375" ID x 40613" OD x 0.156"

RACE bearing

1шт.

18

D63332

THRUST BEARING,2.267" ID x 3.845" OD x 0.375"

thrust

1шт.

19

D80508

RACE

ASSEMBLY piston

1шт.

20

D63341

BUSHING

SPACER

1шт.

21

7035843

PISTON

KIT repair, solid, includes 9 pistons

1шт.

22

D63344

BLOCK

piston

1шт.

23

D63333

WASHER, THRUST

RACE

1шт.

24

100-21162

SNAP RING,1.625", Int, #162

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.
