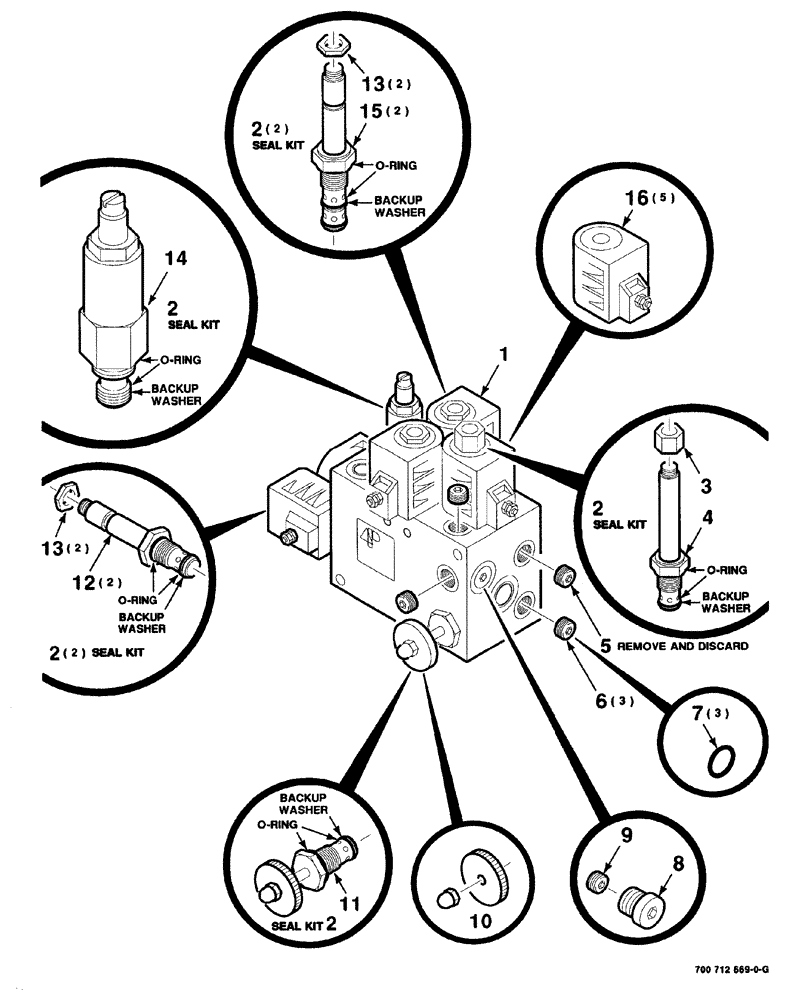

Запчасти Case IH 8840 (08-026) - HYDRAULIC CONTROL VALVE ASSEMBLY, LIFT AND FLOTATION (35) - HYDRAULIC SYSTEMS

1

700712669

VALVE

ASSEMBLY control, complete

1шт.

2

700712678

KIT

seal

7шт.

3

700712824

NUT

hex

1шт.

4

700712823

ASSEMBLY

VALVE, N. O. poppet

1шт.

5

700712829

PLUG

orifice, .109", remove and discard

1шт.

6

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

No. 4 SAE, Includes: Ref. 7

3шт.

7

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

3шт.

Part of Plug, Ref. 6, P/N 218-5151.

1шт.

8

700712831

PLUG

No. 6 SAE

1шт.

9

700712827

PLUG

orifice .060"

1шт.

10

700712688

KNOB

KIT nut

1шт.

11

700712826

VALVE

CONTROL flow

1шт.

12

700712822

CARTRIDGE

VALVE, N.C. poppet

2шт.

13

298986A1

NUT

hex

4шт.

14

700712825

VALVE

relief

1шт.

15

700712819

CARTRIDGE

VALVE, 3W, 2P

2шт.

16

700712820

COIL

ENCAP, SP, 12 VDC

5шт.
