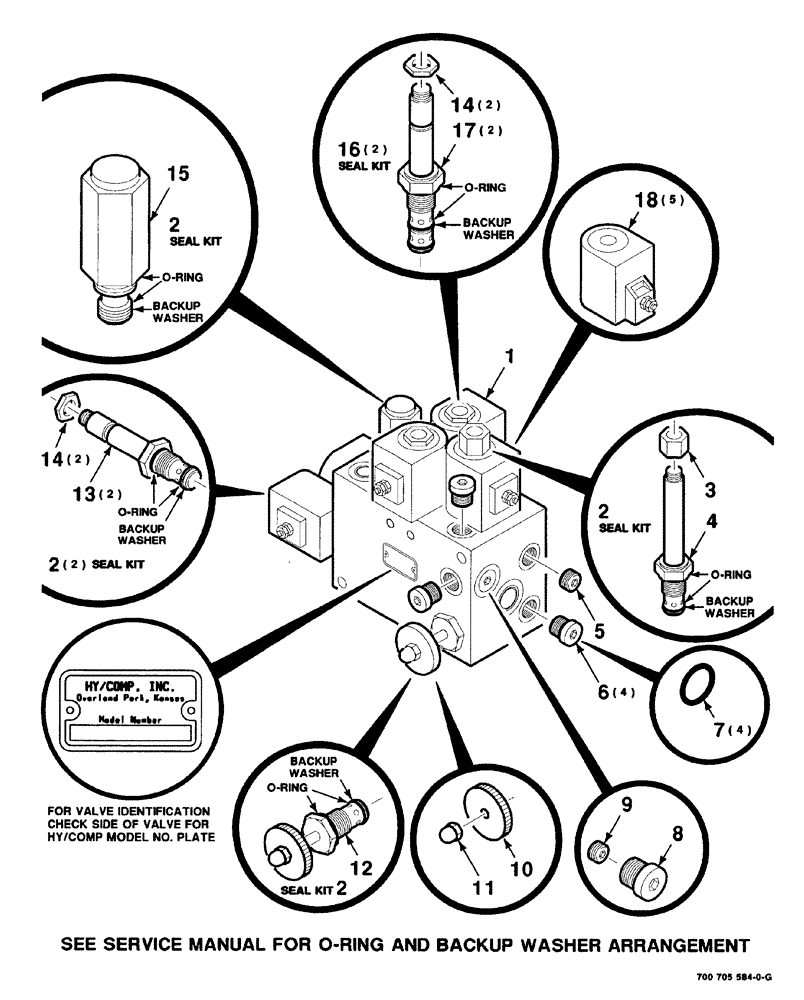

Запчасти Case IH 8840 (08-024) - CONTROL VALVE, LIFT AND FLOTATION (35) - HYDRAULIC SYSTEMS

1

700705584

CONTROL VALVE

ASSEMBLY control, complete

1шт.

2

149942C1

SEAL KIT

5шт.

3

700706156

NUT

hex

1шт.

4

700706155

VALVE PRESSURE RELIE

1шт.

5

700706160

ORIFICE

PLUG, .109"

1шт.

6

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

Includes: Ref. 7

4шт.

7

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

4шт.

Part of Plug, Ref. 6, P/N 218-5151.

1шт.

8

700707840

PLUG

O-ring

1шт.

9

700706159

ORIFICE

PLUG, .060"

1шт.

10

700709819

KNOB

1шт.

11

700709818

NUT

acorn

1шт.

12

700706158

DRAINCOCK/TAP SUPPLY

needle

1шт.

13

700706153

HYDRAULIC VALVE

2шт.

14

700706151

NUT

hex

4шт.

15

700706157

HYDRAULIC VALVE

relief

1шт.

16

700706152

SEAL KIT

KIT

2шт.

17

700706148

CARTRIDGE

2шт.

18

700706149

COIL

solenoid

5шт.
