(08-022) - HYDRAULIC CYLINDER ASSEMBLY (TWO SPEED SHIFT)

Запчасти Case IH 8840 (08-022) - HYDRAULIC CYLINDER ASSEMBLY (TWO SPEED SHIFT) (35) - HYDRAULIC SYSTEMS

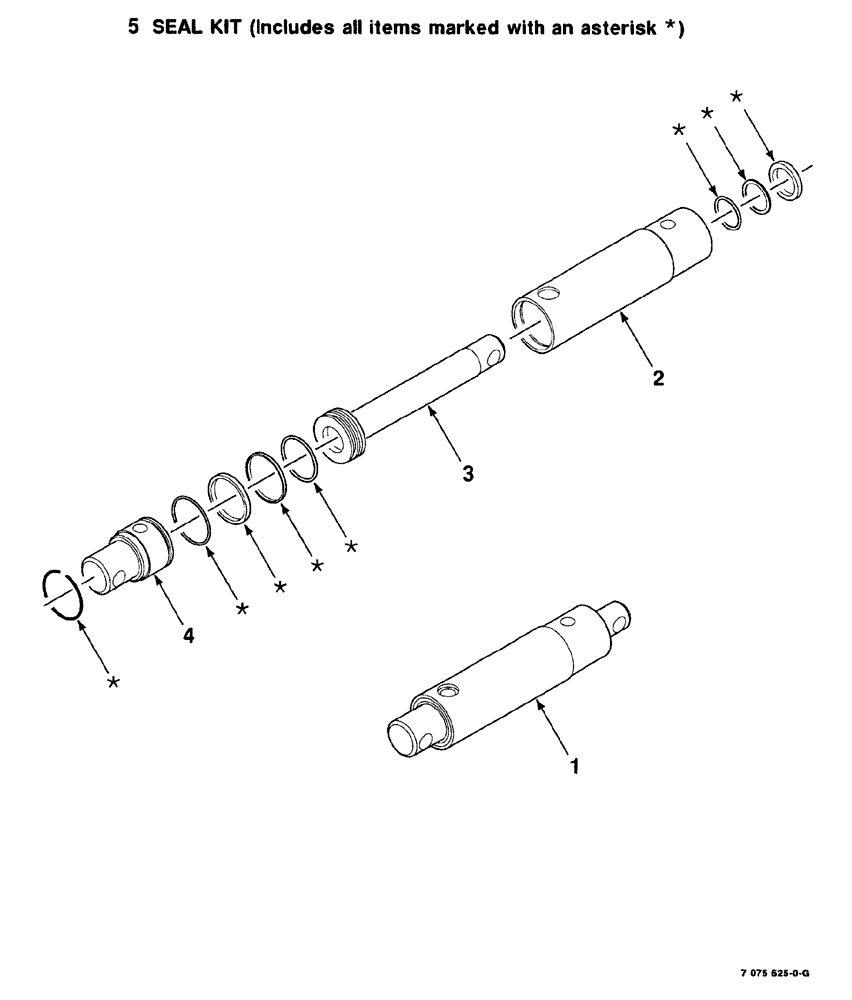

Схема запчастей Case IH 8840 - (08-022) - HYDRAULIC CYLINDER ASSEMBLY (TWO SPEED SHIFT) (35) - HYDRAULIC SYSTEMS
3
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7075625

CYLINDER

hydraulic, complete, 2" bore x 4" stroke

1шт.

2

7732258

TUBE ASSY.

BARREL

1шт.

3

7732266

ROD

ASSEMBLY piston

1шт.

4

7732241

HEAD

cylinder

1шт.

5

7732274

SEAL KIT

KIT, Includes all items in art with an asterisk

1шт.
