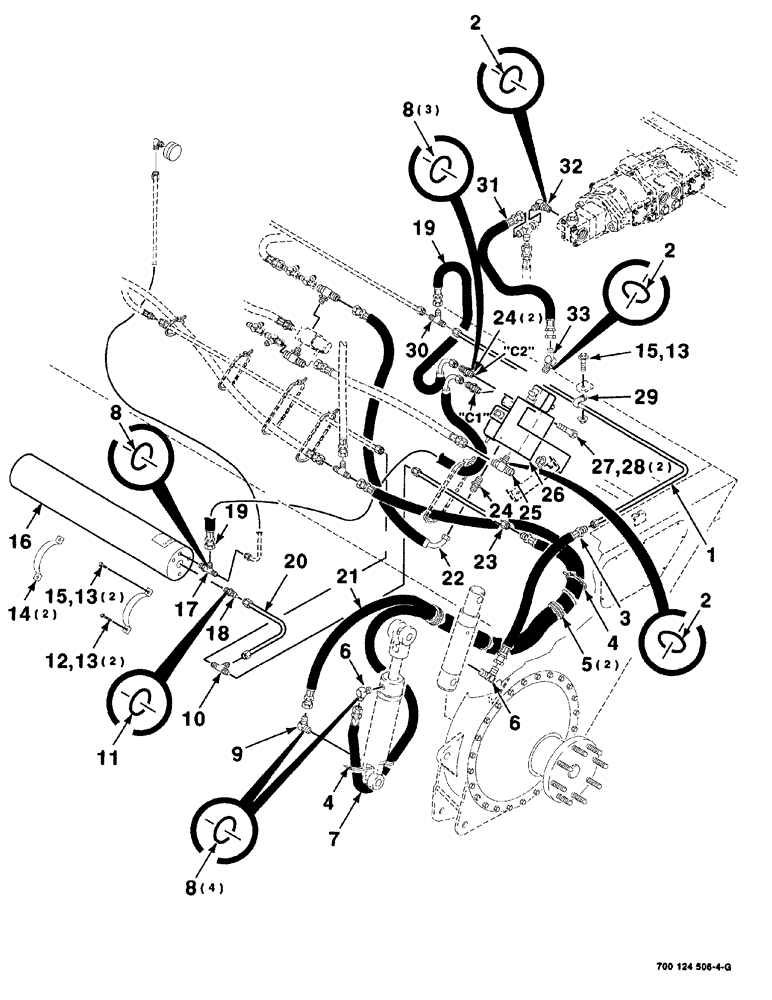

Запчасти Case IH 8840 (08-018) - HEADER LIFT HYDRAULIC ASSEMBLY (LEFT) (S.N.CFH0031466 AND LATER) (35) - HYDRAULIC SYSTEMS

1

700707071

TUBE ASSY.,9.52 mm OD, 1200, 440 mm Length

steel

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

Part of Hydraulic Tee, Ref. 25, P/N 218-5183.

1шт.

Part of Elbow, Ref.32, P/N 218-5106.

1шт.

Part of Elbow, Ref.33, P/N 218-5136.

1шт.

3

8843153

HOSE

hydraulic

1шт.

4

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

2шт.

5

700707073

GROMMET

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

lncludes: Ref. 8

2шт.

7

700707082

HOSE

hydraulic

1шт.

8

738468

O-RING

8шт.

Part of Elbow, Ref. 9, P/N 218-5280.

1шт.

Part of Elbow, Ref. 6, P/N 218-5105.

1шт.

Part of Tee, Ref. 17, P/N 218-5243.

1шт.

Part of Adapter, Ref.24, P/N 218-5057.

1шт.

9

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°, Includes: Ref. 8

1шт.

10

218-596

TEE,1 1/16"-12 37 Degree

TEE, 37° tapper, straight thread

1шт.

11

738484

O-RING

1шт.

Part of O-ring Connector, Ref. 18, P/N 218-5064.

1шт.

12

700711084

BOLT

SCREW flange, hex, 3/8"-16 x 1-1/2", grade 8

2шт.

13

231-5146

FLANGE NUT,3/8"-16

5шт.

14

700122708

STRAP

2шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

16

700712632

ACCUMULATOR

ASSEMBLY hydraulic, see Figure 08-032

1шт.

17

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Str. thread run, Includes: Ref. 8

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 11

1шт.

19

700707076

FLEXIBLE HOSE

hydraulic

2шт.

20

700710133

TUBE,19.05 mm OD, 215, 215 mm Length

hydraulic

1шт.

21

8842338

HOSE

hydraulic

1шт.

22

700707079

FLEXIBLE HOSE

hydraulic

1шт.

23

700708738

RIGID TUBE

steel

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 8

3шт.

25

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

TEE hydraulic, Includes: Ref. 2

1шт.

26

700705584

CONTROL VALVE

1шт.

P/N 700712669 interchanges with P/N 700705584, but existing stock of P/N 700705584 should be used prior to ordering P/N 700712669.

1шт.

S.N. CFH0031001 thru CFH0031942 and S.N. CFH0086141 thru CFH0086256.

1шт.

700712669

VALVE

1шт.

P/N 700712669 interchanges with P/N 700705584, but P/N 700712669 must be stocked for it's respective effectivity.

1шт.

S.N. CFH0056001 thru CFH0086140 and S.N. CFH0086257 and later.

1шт.

27

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

hex, 5/16"-18 x 3-1/2"

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line

1шт.

30

218-593

TEE,9/16"-18, 37 Degree

union

1шт.

31

700705745

FLEXIBLE HOSE

hydraulic

1шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 2

1шт.

33

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 2

1шт.
