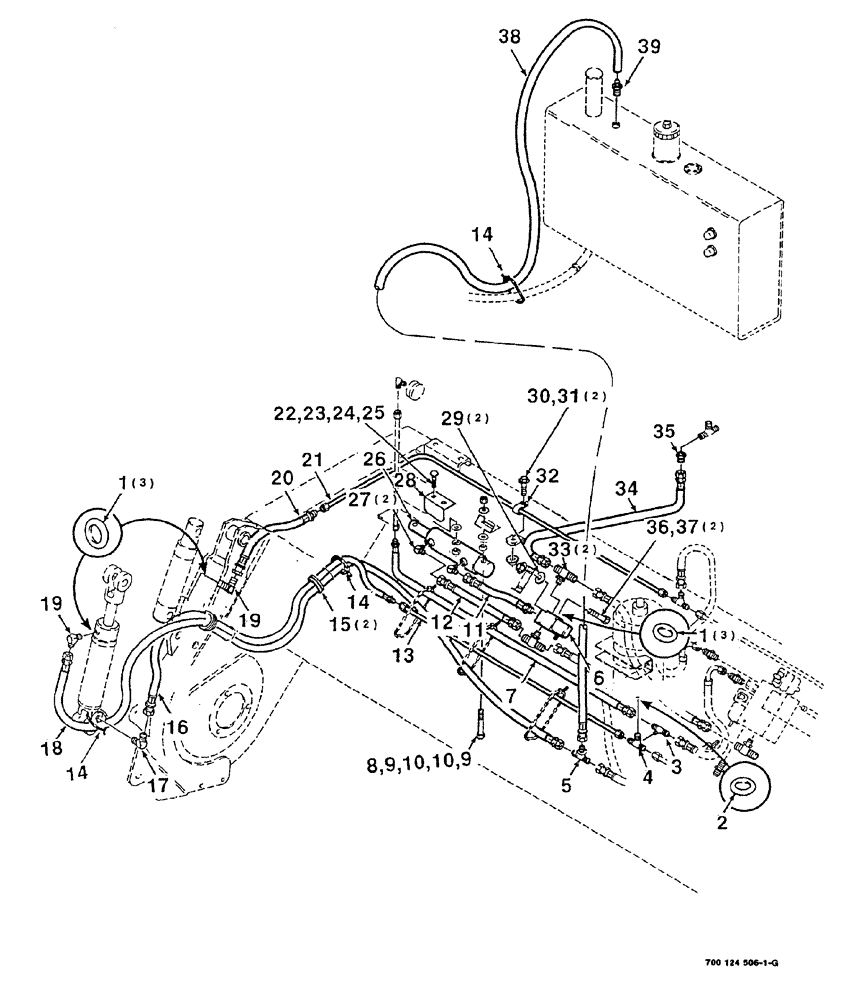

Запчасти Case IH 8840 (08-016) - HEADER HYDRAULIC LIFT ASSEMBLY (RIGHT) (S.N. CFH0031001 THRU CFH0031465) (35) - HYDRAULIC SYSTEMS

1

738468

O-RING

6шт.

Part of Hydraulic Hose, Ref. 11, P/N 700707080.

1шт.

Part of Elbow, Ref. 17, P/N 218-5280.

1шт.

Part of Elbow, Ref.19, P/N 218-5105.

1шт.

Part of Tee, Ref. 33, P/N 218-5182.

1шт.

2

738484

O-RING

1шт.

Part of Hydraulic Hose, Ref. 7, P/N 1254576C2.

1шт.

3

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

TEE

1шт.

4

700114940

3 WAY CONNECTION

tee

1шт.

5

218-593

TEE,9/16"-18, 37 Degree

flared

1шт.

6

700707074

CONTROL VALVE

1шт.

7

1254576C2

HOSE ASSY.

hydraulic, Includes: Ref. 2

1шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW cap, hex, 5/8"-11 x 3-1/4"

1шт.

9

425-1010

NUT,5/8"-11, G5

2шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

11

700707080

HOSE

hydraulic, Includes: Ref. 1

1шт.

12

700707081

HOSE

hydraulic

1шт.

13

700708739

FLEXIBLE HOSE

hydraulic

1шт.

14

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

3шт.

15

700707073

GROMMET

2шт.

16

8842338

HOSE

hydraulic

1шт.

17

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°, Includes: Ref. 1

1шт.

18

700707082

HOSE

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 1

2шт.

20

8843153

HOSE

hydraulic

1шт.

21

700707071

TUBE ASSY.,9.52 mm OD, 1200, 440 mm Length

hydraulic

1шт.

22

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

23

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

7075625

CYLINDER

hydraulic

1шт.

27

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°

2шт.

28

700115732

STOP

STOP

1шт.

29

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

2шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

33

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 1

2шт.

34

700707086

HOSE

hydraulic

1шт.

35

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

ADAPTER

1шт.

36

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

38

700707084

HOSE

1шт.

39

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

COUPLING insert

1шт.
