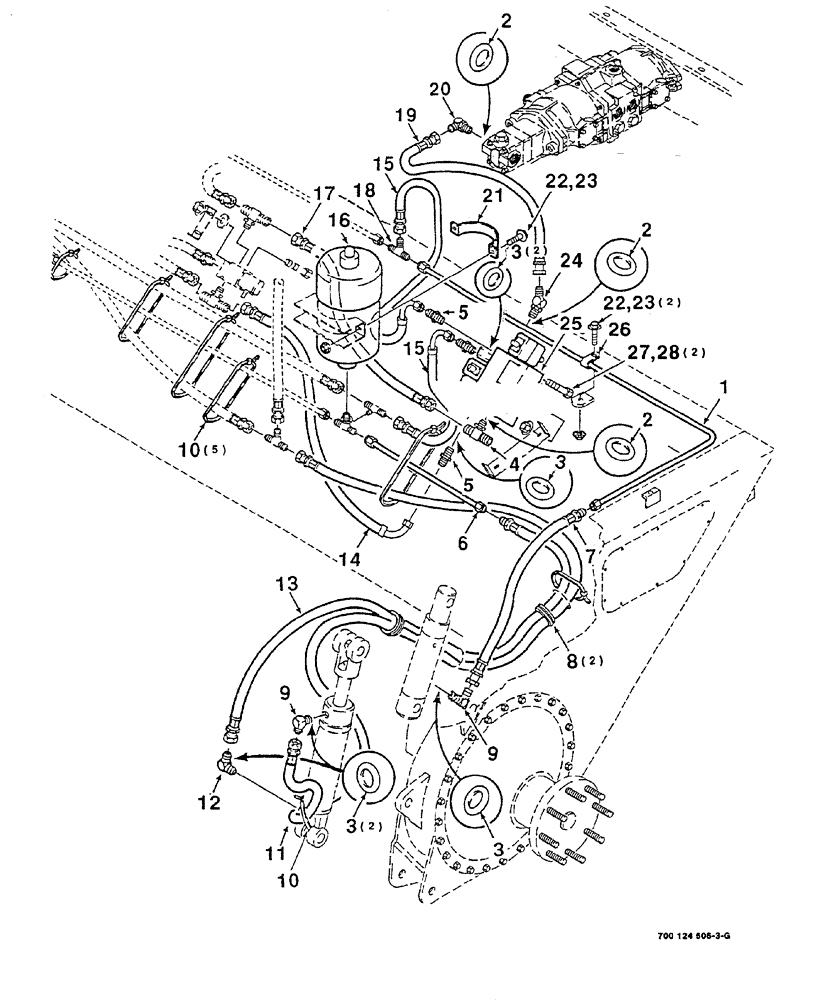

Запчасти Case IH 8840 (08-014) - HEADER HYDRAULIC LIFT ASSEMBLY (LEFT) (S.N. CFH0031001 THRU CFH0031465) (35) - HYDRAULIC SYSTEMS

1

700707071

TUBE ASSY.,9.52 mm OD, 1200, 440 mm Length

hydraulic

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

Part of Elbow, Ref.20, P/N 218-5106.

1шт.

Part of Adjustable Elbow, Ref.24, P/N 218-5136.

1шт.

3

738468

O-RING

6шт.

Part of Elbow, Ref. 9, P/N 218-5105.

1шт.

Part of Elbow, Ref. 12, P/N 218-5280.

1шт.

4

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

TEE bulkhead

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

6

700708738

RIGID TUBE

hydraulic

1шт.

7

8843153

HOSE

hydraulic

1шт.

8

700707073

GROMMET

2шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 3

2шт.

10

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE nylon

6шт.

11

700707082

HOSE

hydraulic

1шт.

12

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°, Includes: Ref. 3

1шт.

13

8842338

HOSE

hydraulic

1шт.

14

700707079

FLEXIBLE HOSE

ASSEMBLY

1шт.

15

700707076

FLEXIBLE HOSE

ASSEMBLY

2шт.

16

700705583

ACCUMULATOR

1шт.

17

700707085

HOSE

LINE hydraulic

1шт.

18

218-593

TEE,9/16"-18, 37 Degree

1шт.

19

700705745

FLEXIBLE HOSE

ASSEMBLY

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 2

1шт.

21

700111180

HOSE CLIP

1шт.

22

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

23

231-5146

FLANGE NUT,3/8"-16

3шт.

24

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Incl. Ref 2

1шт.

25

700705584

CONTROL VALVE

control, lift and flotation, see Figure 08-024

1шт.

P/N 700712669 interchanges with P/N 700705584, but existing stock of P/N 700705584 should be used prior to ordering P/N 700712669.

1шт.

700712669

VALVE

control, lift and flotation, see Figure 08-026

1шт.

P/N 700712669 interchanges with P/N 700705584, but P/N 700712669 must be stocked for it's respective effectivity.

1шт.

26

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

27

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

cap, hex, 5/16"-18 x 3-1/2"

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
