(08-010) - HYDRAUILIC CYLINDER ASSEMBLY (RIGHT) (S.N. CFH0031733 AND LATER)

Запчасти Case IH 8840 (08-010) - HYDRAUILIC CYLINDER ASSEMBLY (RIGHT) (S.N. CFH0031733 AND LATER) (35) - HYDRAULIC SYSTEMS

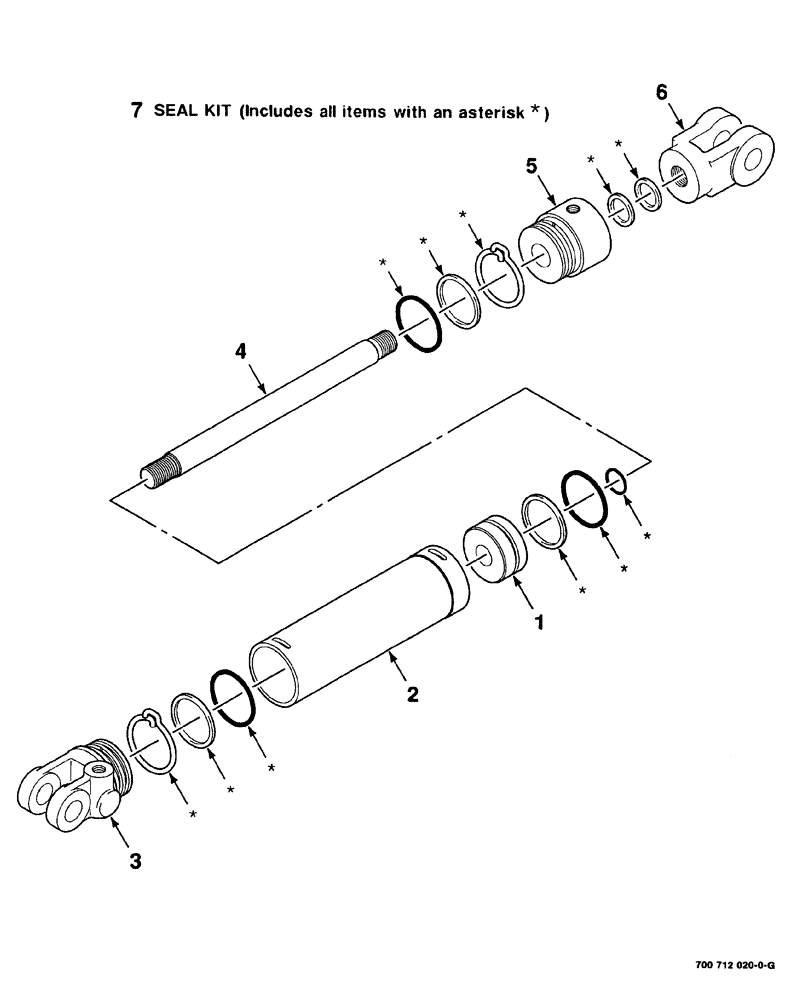

Схема запчастей Case IH 8840 - (08-010) - HYDRAUILIC CYLINDER ASSEMBLY (RIGHT) (S.N. CFH0031733 AND LATER) (35) - HYDRAULIC SYSTEMS
4
7
6
2
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712020

CYLINDER

hydraulic, complete, 2-3/4" bore x 8" stroke

1шт.

B836994

CLAMP

CYLINDER hydraulic, complete

2шт.

1

700710255

PISTON

cylinder

1шт.

2

700712107

SLEEVE CYLINDER

BARREL

1шт.

3

700706175

HEAD

cylinder

1шт.

4

700706178

PISTON ROD

1шт.

5

700712108

LIFT CYLINDER

cylinder rod

1шт.

6

50-2079T1

END

CLEVIS rod

1шт.

7

700710256

SEAL KIT

seal, Includes all items in art with an asterisk

1шт.
