(08-006) - HYDRAULIC CYLINDER ASSEMBLY (FLOTATION, LEFT AND RIGHT) (S.N.CFH0031001 THRU CFH0031732)

Запчасти Case IH 8840 (08-006) - HYDRAULIC CYLINDER ASSEMBLY (FLOTATION, LEFT AND RIGHT) (S.N.CFH0031001 THRU CFH0031732) (35) - HYDRAULIC SYSTEMS

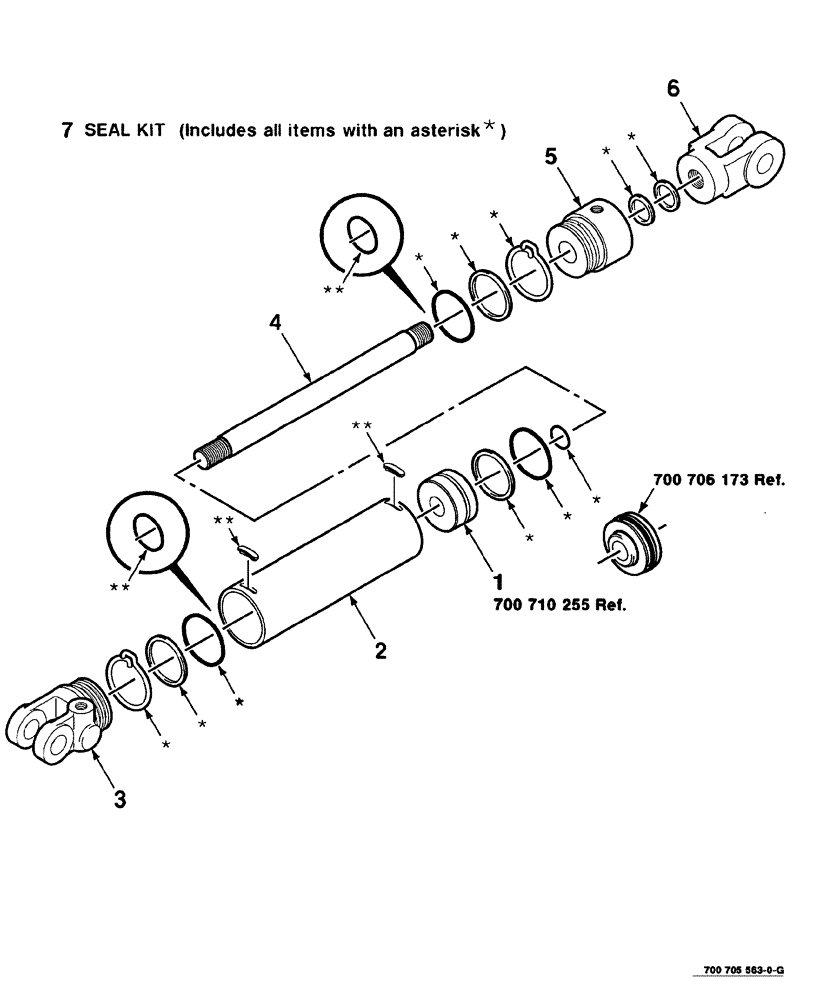

Схема запчастей Case IH 8840 - (08-006) - HYDRAULIC CYLINDER ASSEMBLY (FLOTATION, LEFT AND RIGHT) (S.N.CFH0031001 THRU CFH0031732) (35) - HYDRAULIC SYSTEMS
7
1
2
3
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700705563

HYDRAULIC CYLINDER

hydraulic, complete, 2-3/4" bore x 8" stroke

1шт.

1

700710255

PISTON

cylinder

1шт.

2

700710257

SLEEVE CYLINDER

BARREL

1шт.

3

700706175

HEAD

cylinder

1шт.

4

700706178

PISTON ROD

1шт.

5

700706174

BUSHING

cylinder rod

1шт.

6

50-2079T1

END

CLEVIS rod

1шт.

7

700710256

SEAL KIT

repair, seal and O-ring, Includes items in art marked with an asterisk

1шт.
