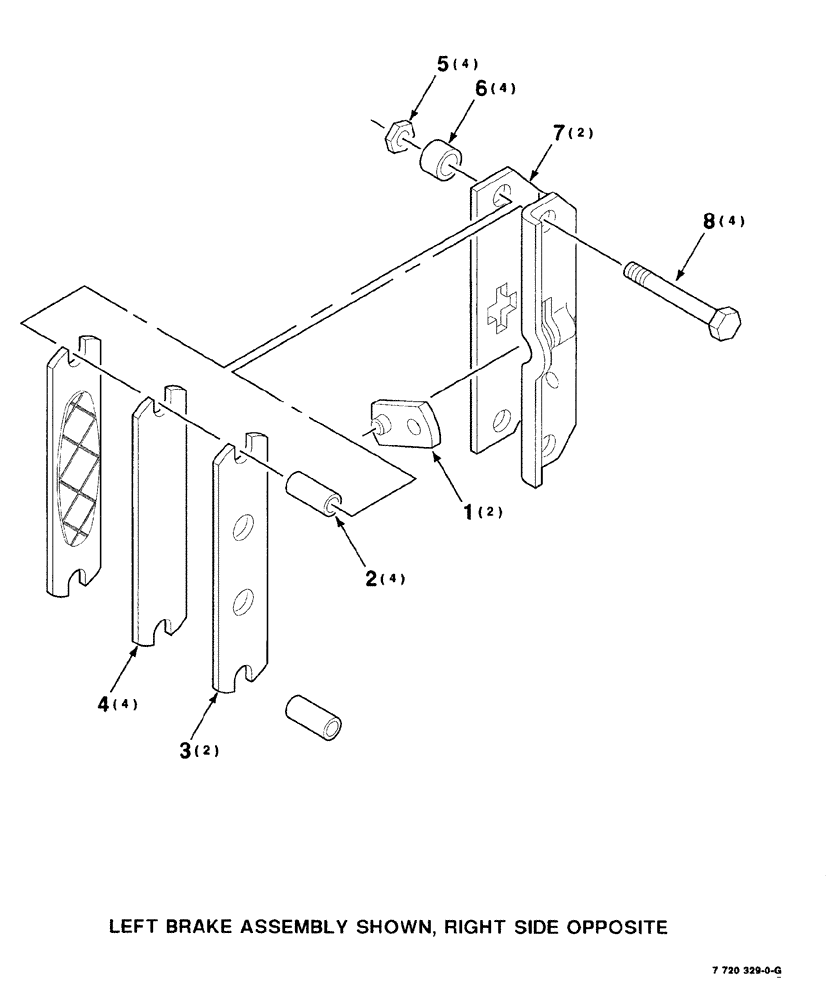

Запчасти Case IH 8840 (05-020) - BRAKE ASSEMBLY (33) - BRAKES & CONTROLS

7720329

BRAKE ASSY.

left, complete

1шт.

Due to a design change P/N 7720329 and P/N 7720337 are not interchangeable.

1шт.

7720337

BRAKE ASSY.

right, complete

1шт.

Due to a design change P/N 7720329 and P/N 7720337 are not interchangeable.

1шт.

1

7723802

LEVER ASSY.

actuator

2шт.

2

700713932

SPACER

4шт.

3

7723786

PLATE

pressure

2шт.

4

7723778

STATOR

ASSEMBLY

4шт.

5

131-1306

JAM NUT,Jam, 3/8"-16

lock, center, jam, hex, 3/8"-16

4шт.

6

7723760

SPACER

4шт.

7

7723794

BRACKET

secondary

2шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.
