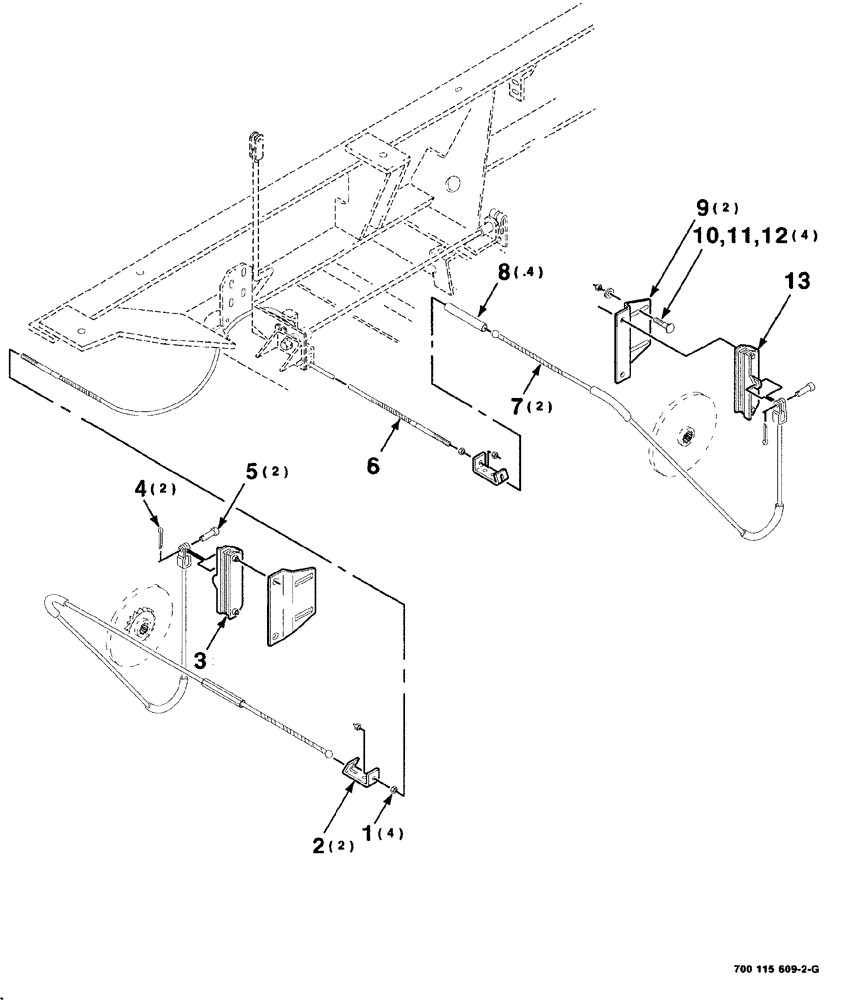

Запчасти Case IH 8840 (05-018) - BRAKE CABLE ASSEMBLY (33) - BRAKES & CONTROLS

1

425-115

NUT,5/16"-24, G5

4шт.

2

6827745

BRACKET

2шт.

3

7720337

BRAKE ASSY.

right, see Figure 05-020

1шт.

4

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

5

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

3/8" x 1"

2шт.

6

700707017

FLEXIBLE CONTROL

brake

1шт.

7

7720360

CABLE

brake

2шт.

8

700712508

TUBE

shrink

4шт.

9

6829741

BRACKET

brake

2шт.

10

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT square neck, round head, 1/2"-13 x 1"

4шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

4шт.

13

7720329

BRAKE ASSY.

left, see Figure 05-020

1шт.
