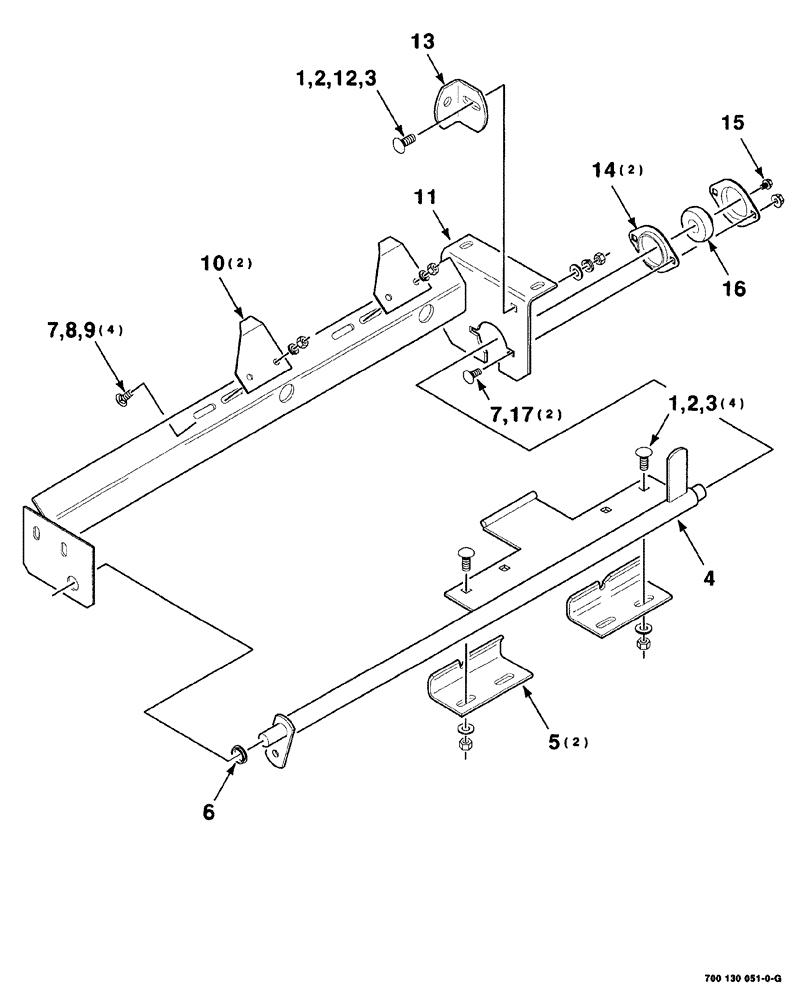

Запчасти Case IH 8840 (05-016) - LOCK ASSEMBLY (33) - BRAKES & CONTROLS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

5шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

5шт.

3

425-106

NUT,3/8"-16, Cl 5

5шт.

4

700115668

SHAFT

WA

1шт.

5

700110997

LATCH

2шт.

6

852988

NYLON BEARING

BEARING nylon

1шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

700115665

STOP

stop

2шт.

11

700115661

STOP

WA

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

700115666

SUPPORT

MOUNTING switch

1шт.

14

469924R1

FLANGE

2шт.

15

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

serrated, hex flange, 1/2"-13 x 3/4"

1шт.

16

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

spherical

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
