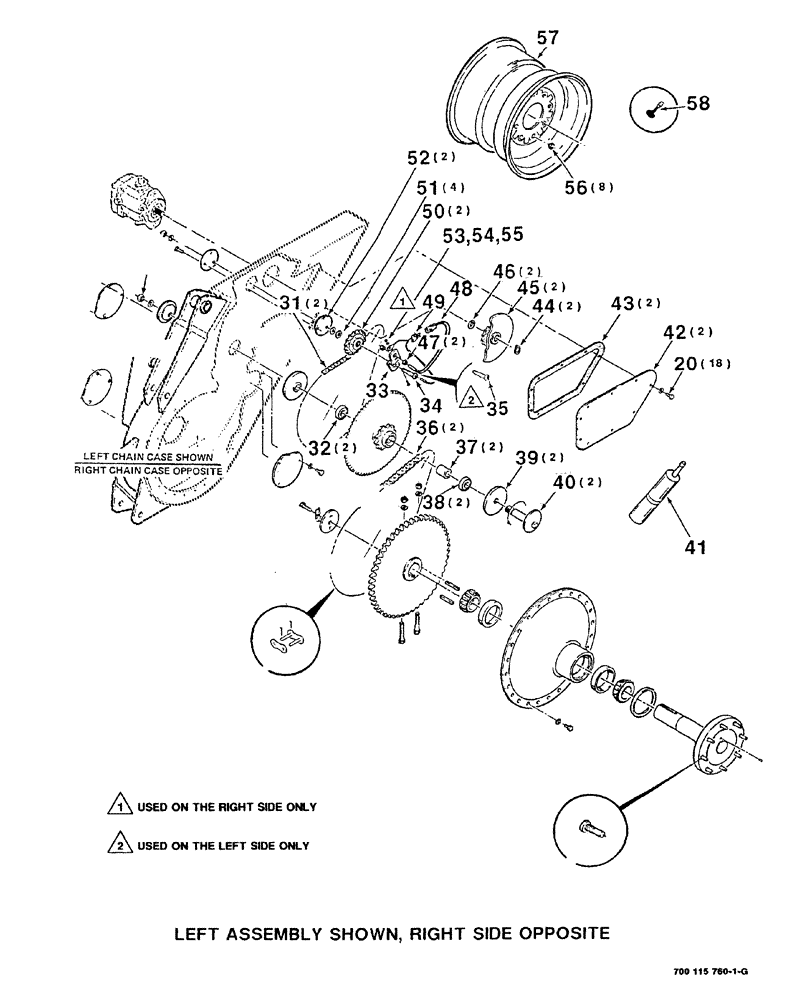

Запчасти Case IH 8840 (06-004) - CHAIN CASE, AXLE AND WHEEL ASSEMBLY (14) - MAIN GEARBOX & DRIVE

31

89490

CHAIN (AG)

roller, endless, No. 50

2шт.

32

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

ball

2шт.

33

700115884

BRACKET

sensor

1шт.

34

700115885

SCREW

special

1шт.

35

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW cap, hex, 1/2"-13 x 2-1/2"

1шт.

36

7851108

ROLLER

CHAIN heavy duty, No. 80

2шт.

37

252403

SPACER

2шт.

38

8050635

BEARING, ROLLER, CYL,25mm ID x 52mm OD x 15mm W

ball

2шт.

39

444489

SPACER

flange

2шт.

40

700708274

JACKSHAFT

2шт.

41

700707823

SEALANT

TUBE, of silastic

1шт.

42

444463

COVER

PLATE

2шт.

43

744169

GASKET

cover

2шт.

44

103-1193

SNAP RING,#93, Ext

2шт.

45

6828529

SPROCKET ASSY.

BRAKE DISC

2шт.

46

730127

CIRCLIP

RING retaining

2шт.

47

425-1512

JAM NUT,Jam, 3/4"-10, G5

J, 3/4"-16

2шт.

48

700706398

SENSOR

PTO

1шт.

49

700707096

WIRE HARNESS

WIRE electric

1шт.

50

7087398

DRIVE SPROCKET

idler, 17 teeth

2шт.

51

95-81100

WASHER,33/64" x 7/8" x .049"

BUSHING machinery, 1/2" x 18

4шт.

52

312249

CAM

inner

2шт.

53

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

54

492-11010

LOCK WASHER,#10

1шт.

55

225-14110

NUT,#10-24

1шт.

56

554480R1

WHEEL NUT

wheel, 5/8"-18

8шт.

57

700714850

RIM

WHEEL LBDC, 16.1 x 16

1шт.

58

7027469

VALVE

STEM

1шт.
