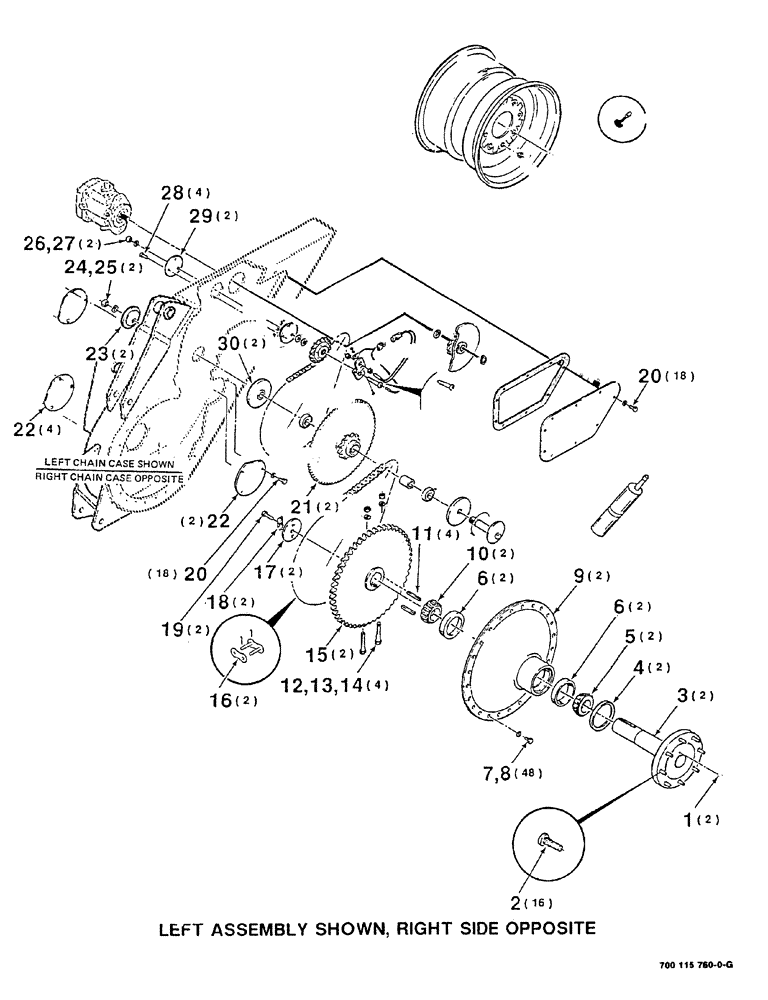

Запчасти Case IH 8840 (06-002) - CHAIN CASE, AXLE AND WHEEL ASSEMBLY (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
1
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
2шт.
2
566206R2
BOLT,5/8" - 18 x 2.38", Class 8
BOLT wheel, 5/8"-18 x 2-3/8"
16шт.
3
NLS
NO LONGER SERVICED
AXLE hubs
2шт.
Due to a design change P/N 6497887 and P/N 700122695 are not interchangeable.
1шт.
S.N. CFH0031001 thru CFH0031381.
1шт.
700122695
AXLE
hub
4шт.
Due to a design change P/N 6497887 and P/N 700122695 are not interchangeable.
1шт.
S.N. CFH0031382 and later.
1шт.
4
A30102
OIL SEAL
grease
2шт.
5
13367DC
ROLLER BEARING
outer
2шт.
Due to a design change P/N 13367DC and P/N 25695HO are not interchangeable.
1шт.
S.N. CFH0031001 thru CFH0031381.
1шт.
25695HO
ROLLER BEARING,66.688mm ID x 30.124mm
outer
4шт.
Due to a design change P/N 13367DC and P/N 25695HO are not interchangeable.
1шт.
S.N. CFH0031382 and later.
1шт.
6
22396V
BEARING, CUP,112.739mm OD x 30.37mm W
4шт.
7
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
48шт.
8
492-11038
LOCK WASHER,3/8"
48шт.
9
6269773
HUB
HOUSING axle
2шт.
10
ST2116
TAPERED BEARING,2.375" ID x 4.4375" OD x 1.1875" W
cone, inner
2шт.
11
6269765
KEY
special, 3/8" x 3/8" x 3"
4шт.
12
413-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
SCREW cap, hex, 3/4"-10 x 4-1/2"
4шт.
13
492-11075
LOCK WASHER,3/4"
3/4"
4шт.
14
425-1012
NUT,3/4"-10, G5
4шт.
15
700115769
SPROCKET
80 teeth
2шт.
16
7851132
LINK, CONNECTING
No. 80
2шт.
17
6269757
WASHER
special
2шт.
18
7893910
PLATE
lock
2шт.
19
414-1224
BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5
hex, 3/4"-16 x 1-1/2"
2шт.
20
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
36шт.
21
7850654
SPROCKET ASSY.
jackshaft
2шт.
22
235515
COVER
PLATE
6шт.
23
51200235
CAM
cap
2шт.
24
492-11088
LOCK WASHER,7/8"
7/8"
2шт.
25
425-1014
NUT,7/8"-9, G5
2шт.
26
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
27
425-108
NUT,1/2" - 13, Gr 5
2шт.
28
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
29
51200200
PROTECTIVE COVER
cam
2шт.
30
444513
SPACER
flange
2шт.
Выбрано товаров: 40
