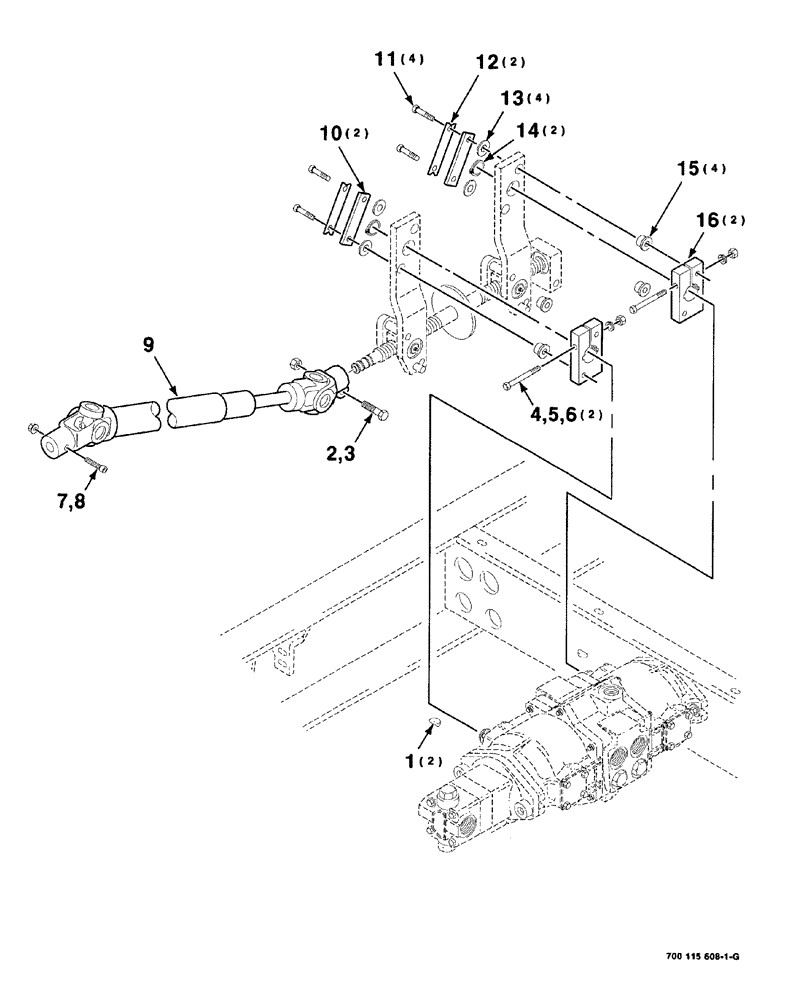

Запчасти Case IH 8840 (05-006) - TRANSMISSION CONTROL ASSEMBLY (PUMP MOUNTING) (14) - MAIN GEARBOX & DRIVE

1

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

2шт.

2

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

3

230-4217

LOCK NUT,7/16"-14, GA

lock, hex center, 7/16"-14

1шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

cap, hex socket head, SPL, 5/16"-18 x 1-1/2"

1шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, 5/16"-18, grade/G

1шт.

9

700707008

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY steering, see Figure 05-008

1шт.

10

700117550

STRAP

2шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

12

700117551

LOCKING TAB

TAB

2шт.

13

700117552

WASHER

4шт.

14

100-1198

SNAP RING,#98, Ext

2шт.

15

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT center bond

4шт.

16

700110910

ARM

steering

2шт.
