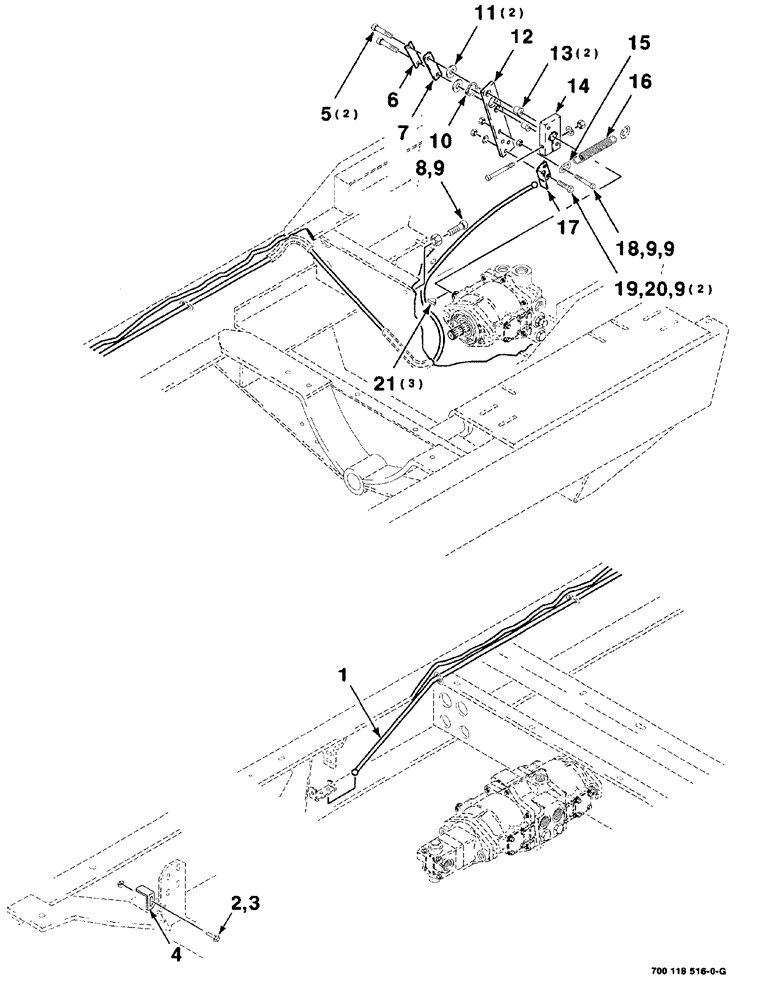

Запчасти Case IH 8840 (05-004) - TRANSMISSION CONTROL (CLUTCH ARM) ASSEMBLY (14) - MAIN GEARBOX & DRIVE

1

700707007

FLEXIBLE CONTROL

clutch

1шт.

2

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

700114977

STOP

clutch

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

700117551

LOCKING TAB

TAB

1шт.

7

700117550

STRAP

1шт.

8

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

9

425-106

NUT,3/8"-16, Cl 5

5шт.

10

100-1198

SNAP RING,#98, Ext

1шт.

11

700117552

WASHER

2шт.

12

700115644

ARM

ARM header

1шт.

13

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

2шт.

14

700110910

ARM

steering

1шт.

15

89987

CHAIN (AG)

LINK

1шт.

16

7058985

SPRING

extension

1шт.

17

700115645

SUPPORT

cable

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

3шт.
