(02-008) - UNIVERSAL JOINT ASSEMBLY (REAR)

Запчасти Case IH 8840 (02-008) - UNIVERSAL JOINT ASSEMBLY (REAR) (14) - MAIN GEARBOX & DRIVE

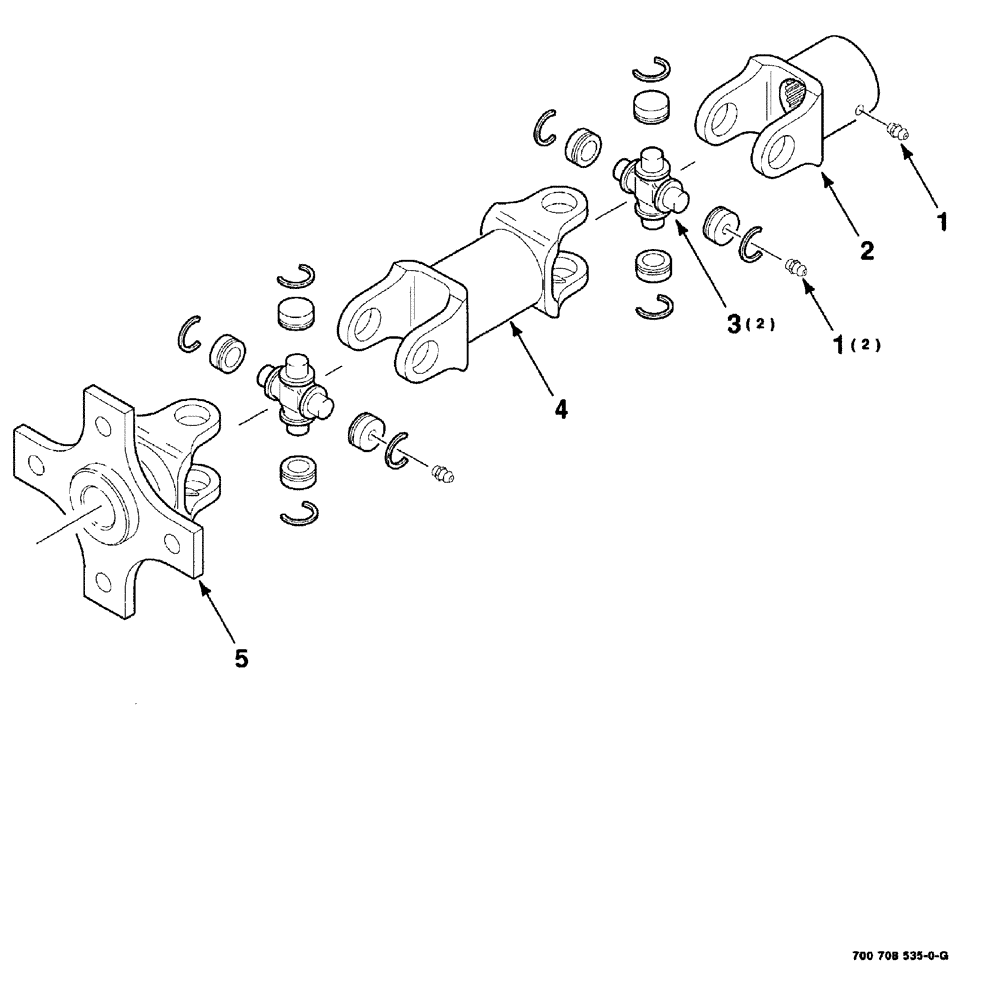

Схема запчастей Case IH 8840 - (02-008) - UNIVERSAL JOINT ASSEMBLY (REAR) (14) - MAIN GEARBOX & DRIVE
2
1
1
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700708535

UNIVERSAL JOINT

ASSEMBLY complete

1шт.

1

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

3шт.

2

7805849

FORK

YOKE splined

1шт.

3

700711843

FLEXIBLE JOINT

KIT cross and bearing

2шт.

4

700712431

LINK

YOKE double

1шт.

5

700708937

FORK

YOKE flanged

1шт.
