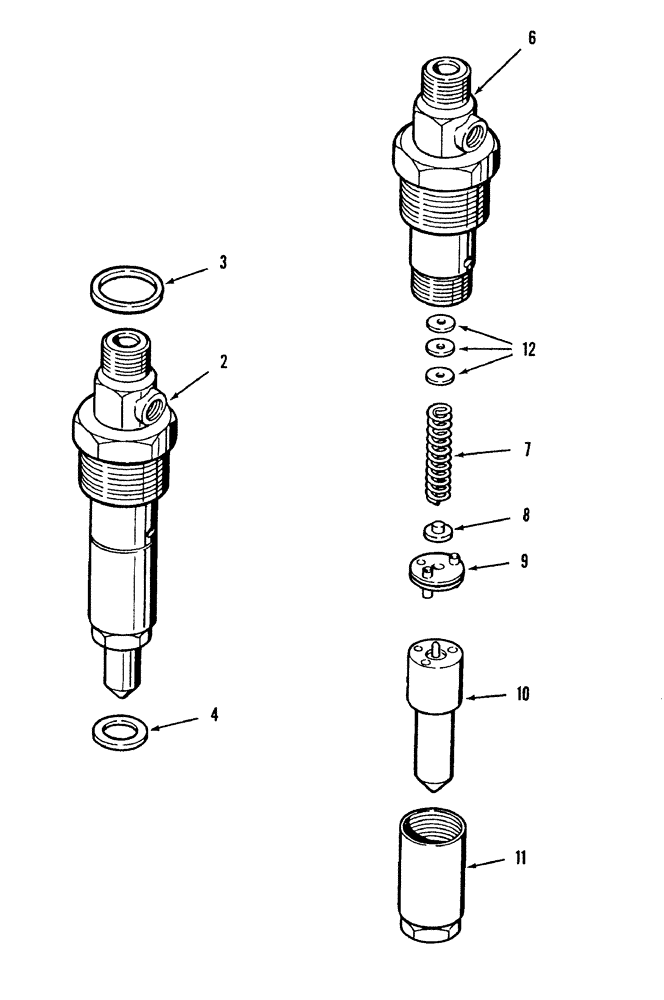

Запчасти Case IH 8840 (10-050) - FUEL INJECTION NOZZLE (DIESEL) 7 MM DIAMETER TIP (10) - ENGINE

2

J919343

NOZZLE INJECTION

ASSEMBLY fuel, 7 mm diameter tip

1шт.

2

JR919343

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

1шт.

2

JC919343

CORE-FUEL INJECTOR

Return Part Number, injection pump

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING

4шт.

4

J920174

PACKING RING

SEAL injector, whenever a nozzle is removed from the cylinder head, P/N J920174 gasket must be replaced before nozzle is installed in cylinder head.

4шт.

6

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY injector

1шт.

7

J905152

SPRING

pressure, nozzle

1шт.

8

J905153

SPINDLE

SEAT pressure spring, nozzle

1шт.

9

J905154

PLATE

STOP ASSEMBLY nozzle valve

1шт.

10

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY, 7 mm diameter

1шт.

11

A48201

NUT

cap, nozzle tip

1шт.

A48186

KIT

shim, pressure, nozzle opening

1шт.

12

1806233C1

SHIM,1.00mm Thk

Nozzle (5 in kit)

1шт.

12

1808234C1

SHIM nozzle, 1.04 mm, 5 in kit

1шт.

12

1806235C1

SHIM,1.08mm Thk

Nozzle (5 in kit)

1шт.

12

1808236C1

TUBE

SHIM nozzle, 1.10 mm, 5 in kit

1шт.

12

1806237C1

SHIM,1.14mm Thk

Nozzle (5 in kit)

1шт.

12

1806238C1

SHIM,1.18mm Thk

Nozzle (5 in kit)

1шт.

12

1806239C1

SHIM,1.20mm Thk

Nozzle (5 in kit)

1шт.

12

1806240C1

SHIM,1.24mm Thk

Nozzle (5 in kit)

1шт.

12

1808241C1

SHIM nozzle, 1.28 mm, 5 in kit

1шт.

12

1808242C1

SHIM nozzle, 1.30 mm, 5 in kit

1шт.

12

1808243C1

SHIM nozzle, 1.34 mm, 5 in kit

1шт.

12

1808244C1

SHIM nozzle, 1.38 mm, 5 in kit

1шт.

12

1808245C1

SHIM nozzle, 1.40 mm, 5 in kit

1шт.

12

1806246C1

SHIM,1.44mm Thk

Nozzle, 5 in kit

1шт.

12

1808247C1

SHIM nozzle, 1.48 mm, 5 in kit

1шт.

12

1808248C1

SHIM nozzle, 1.50 mm, 5 in kit

1шт.

12

1806249C1

SHIM,1.54mm Thk

Nozzle (5 in kit)

1шт.

12

1808250C1

SHIM nozzle, 1.58 mm, 5 in kit

1шт.

12

1808251C1

SHIM nozzle, 1.60 mm, 5 in kit

1шт.

12

1808252C1

SHIM nozzle, 1.64 mm, 5 in kit

1шт.

12

1806253C1

SHIM,1.68mm Thk

Nozzle (5 in kit)

1шт.

12

1806254C1

SHIM,1.70mm Thk

Nozzle (5 in kit)

1шт.

12

1806255C1

SHIM,1.74mm Thk

Nozzle (5 in kit)

1шт.

12

1806256C1

SHIM,1.78mm Thk

Nozzle (5 in kit)

1шт.

12

1806257C1

SHIM,1.80mm Thk

Nozzle (5 in kit)

1шт.

12

1806258C1

SHIM,1.84mm Thk

Nozzle (5 in kit)

1шт.

12

1806259C1

SHIM,1.88mm Thk

Nozzle, 5 in kit

1шт.

12

1806260C1

SHIM,1.90mm Thk

Nozzle (5 in kit)

1шт.

12

1806261C1

SHIM,1.94mm Thk

Nozzle (5 in kit)

1шт.

12

1806262C1

SHIM,1.98mm Thk

Nozzle (5 in kit)

1шт.
